Chromoly Steel Rod Ends - Industrial-Grade Ball Joints
Chromoly Steel Rod Ends - Industrial-Grade Ball Joints
SKU:ROD-f713af
High-performance Chromoly Steel Rod Ends for automotive and industrial use. Premium materials for exceptional durability.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Chromoly Steel Rod Ends - Industrial-Grade Ball Joints
$29.99
Quantity: 1
Claim Your Seller Account
Chromoly Steel Rod Ends - Industrial-Grade Ball Joints
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your automotive vehicles, industrial machines, and equipment with our premium Chromoly Steel Rod Ends. Crafted from heat-treated Chromoly steel with a black oxide coating, these rod ends feature 52100 Bearing Steel balls hardened to HRC58-64 and chrome-plated with PTFE lining for smooth operation and durability. With precise dimensions and a high static radial load capacity, they ensure reliable performance in various applications.

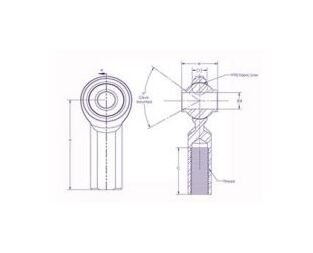

Product Specifications
Specifications Approx Weight
0.20 lbs
Specifications A Length 0015 0015
2.125 in
Specifications A Mis Angle Ref
55
Specifications Ball Material
52100 Bearing Steel, Heat Treated Hrc58-64 Hard Chrome Plated
Specifications Body Material
Chromoly Steel, Heat Treated, Black Oxide Coated
Specifications B Dia 00025 00005
0.3750 in
Specifications C Length 0062 0031
1.062 in
Specifications D Dia 0010 0010
1.125 in
Specifications Liner Material
Ptfe Lined Optional, Add "T" To Suffix
Specifications N Thread Unf 3a
3/8-24
Specifications Rod End Variants
RECM-6T
Specifications Static Radial Load
11,050 lbs
Specifications Thread Type
Left
Specifications Type
Female
Specifications Warning
Prop 65 Warning: This product may contain chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Specifications W Width 0005 0005
0.875 in
