Chromoly Steel Rod Ends - Industrial-Grade Female Variant
Chromoly Steel Rod Ends - Industrial-Grade Female Variant
SKU:ROD-5961ba
Premium Chromoly Steel Rod Ends with Black Oxide Coating and PTFE Lining for industrial machinery and automotive use.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Chromoly Steel Rod Ends - Industrial-Grade Female Variant
$24.99
Quantity: 1
Claim Your Seller Account
Chromoly Steel Rod Ends - Industrial-Grade Female Variant
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance your industrial machinery and automotive vehicles with our Chromoly Steel Rod Ends. Built with precision using Chromoly Steel and 52100 Bearing Steel, Heat Treated materials, these rod ends offer exceptional strength and durability. Featuring a Black Oxide Coating and PTFE Lining, they ensure smooth operation and high load-bearing capacity. With compliance to industry standards and precise specifications, our rod ends are a reliable choice for various applications.

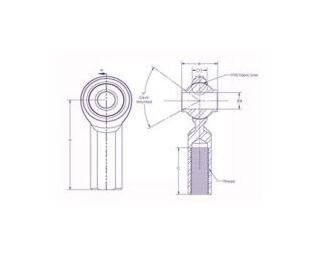

Product Specifications
Specifications Approx Weight
0.20 lbs
Specifications A Length 0015 0015
2.125 in
Specifications A Mis Angle Ref
55
Specifications Ball Material
52100 Bearing Steel, Heat Treated Hrc58-64 Hard Chrome Plated
Specifications Body Material
Chromoly Steel, Heat Treated, Black Oxide Coated
Specifications B Dia 00025 00005
0.3750 in
Specifications C Length 0062 0031
1.062 in
Specifications D Dia 0010 0010
1.125 in
Specifications Liner Material
Ptfe Lined Optional, Add "T" To Suffix
Specifications N Thread Unf 3a
3/8-24
Specifications Rod End Variants
RCHM-6T
Specifications Static Radial Load
11,050 lbs
Specifications Thread Type
Right
Specifications Type
Female
Specifications Warning
Prop 65 Warning: This product may contain chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Specifications W Width 0005 0005
0.875 in
