Chromoly Steel Rod Ends - Industrial-Grade Male Threaded with PTFE Lining
Chromoly Steel Rod Ends - Industrial-Grade Male Threaded with PTFE Lining
SKU:ROD-384c83
High-performance Chromoly Steel Rod Ends for automotive and industrial use. Precision-engineered with heat-treated Chromoly Steel and PTFE lining.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Chromoly Steel Rod Ends - Industrial-Grade Male Threaded with PTFE Lining
$39.99
Quantity: 1
Claim Your Seller Account
Chromoly Steel Rod Ends - Industrial-Grade Male Threaded with PTFE Lining
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your automotive and industrial machinery with our Chromoly Steel Rod Ends. Made from heat-treated Chromoly Steel with Black Oxide coating for durability. Features 52100 Bearing Steel ball with Hard Chrome Plating and PTFE lining for smooth operation and enhanced load-bearing capacity. Designed for precision with UNF 3A threaded ends, this rod end offers a static radial load of 29,127 lbs. Trust in its quality and performance for your critical applications.
Ready to Grow Without Cash Flow Constraints?

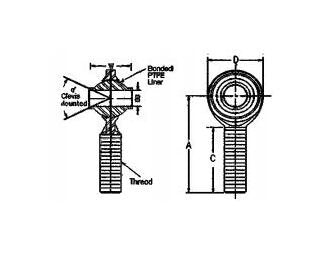

Product Specifications
Specifications Approx Weight
0.79 lbs
Specifications A Length 0015 0015
3.375 in
Specifications A Mis Angle Ref
61
Specifications Ball Material
52100 Bearing Steel, Heat Treated Hrc58-64 Hard Chrome Plated
Specifications Body Material
Chromoly Steel, Heat Treated, Black Oxide Coated
Specifications B Dia 00025 00005
0.7500 in
Specifications C Length 0062 0031
2.000 in
Specifications D Dia 0010 0010
2.000 in
Specifications Liner Material
Ptfe Lined Optional, Add "T" To Suffix
Specifications N Thread Unf 3a
3/4-16
Specifications Rod End Variants
RECHM-12T
Specifications Static Radial Load
29,127 lbs
Specifications Thread Type
Left
Specifications Type
Male
Specifications Warning
Prop 65 Warning: This product may contain chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Specifications W Width 0005 0005
1.500 in
