Chromoly Steel Rod Ends - Industrial-Grade Male Variant
Chromoly Steel Rod Ends - Industrial-Grade Male Variant
SKU:ROD-dbd95f
High-strength Chromoly Steel Rod Ends with PTFE Lining for automotive and industrial applications.
Regular price
$45.99
Regular price
Sale price
$45.99
Unit price
per
Initiate Order
Chromoly Steel Rod Ends - Industrial-Grade Male Variant
$45.99
Quantity: 1
Claim Your Seller Account
Chromoly Steel Rod Ends - Industrial-Grade Male Variant
$45.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Crafted from Chromoly Steel with Heat Treated Black Oxide Coating, our Rod Ends feature 52100 Bearing Steel balls with Hard Chrome Plating and PTFE Lining. Designed for industrial use, they offer unmatched strength and durability. Ideal for automotive vehicles, industrial machinery, and various industries, meeting stringent quality standards.

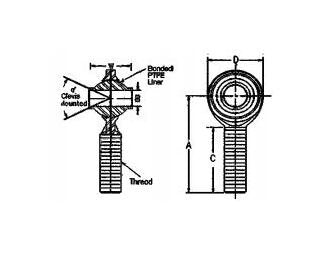

Product Specifications
Specifications Approx Weight
0.68 lbs
Specifications A Length 0015 0015
3.375 in
Specifications A Mis Angle Ref
64
Specifications Ball Material
52100 Bearing Steel, Heat Treated Hrc58-64 Hard Chrome Plated
Specifications Body Material
Chromoly Steel, Heat Treated, Black Oxide Coated
Specifications B Dia 00025 00005
0.6250 in
Specifications C Length 0062 0031
2.000 in
Specifications D Dia 0010 0010
2.000 in
Specifications Liner Material
Ptfe Lined Optional, Add "T" To Suffix
Specifications N Thread Unf 3a
3/4-16
Specifications Rod End Variants
RECM-1012T
Specifications Static Radial Load
30,290 lbs
Specifications Thread Type
Right
Specifications Type
Male
Specifications Warning
Prop 65 Warning: This product may contain chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Specifications W Width 0005 0005
1.375 in
