Chromoly Steel Rod Ends - Male, Chromoly Steel Ball, PTFE Lined
Chromoly Steel Rod Ends - Male, Chromoly Steel Ball, PTFE Lined
SKU:ROD-efbc25
High-performance Chromoly Steel Rod Ends for automotive and industrial use. Chromoly Steel Body, Heat Treated Ball with PTFE Lining.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Chromoly Steel Rod Ends - Male, Chromoly Steel Ball, PTFE Lined
$29.99
Quantity: 1
Claim Your Seller Account
Chromoly Steel Rod Ends - Male, Chromoly Steel Ball, PTFE Lined
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance your automotive and industrial applications with our Chromoly Steel Rod Ends. Our rod ends feature a Chromoly Steel body, Heat Treated 52100 Bearing Steel Ball with Hard Chrome Plating, and PTFE Lining for smooth operation. With precise dimensions and high load capacity, these rod ends are a reliable choice for diverse industries.

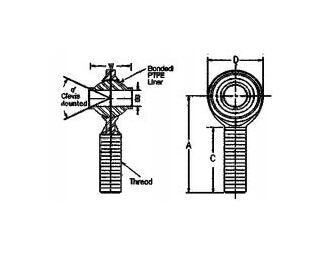

Product Specifications
Specifications Approx Weight
0.68 lbs
Specifications A Length 0015 0015
3.375 in
Specifications A Mis Angle Ref
64
Specifications Ball Material
52100 Bearing Steel, Heat Treated Hrc58-64 Hard Chrome Plated
Specifications Body Material
Chromoly Steel, Heat Treated, Black Oxide Coated
Specifications B Dia 00025 00005
0.6250 in
Specifications C Length 0062 0031
2.000 in
Specifications D Dia 0010 0010
2.000 in
Specifications Liner Material
Ptfe Lined Optional, Add "T" To Suffix
Specifications N Thread Unf 3a
3/4-16
Specifications Rod End Variants
RECHM-1012T
Specifications Static Radial Load
30,290 lbs
Specifications Thread Type
Left
Specifications Type
Male
Specifications Warning
Prop 65 Warning: This product may contain chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Specifications W Width 0005 0005
1.375 in
