Chromoly Steel Rod Ends - Male/Female, Black Oxide Coated
Chromoly Steel Rod Ends - Male/Female, Black Oxide Coated
SKU:ROD-f8177a
Durable Chromoly Steel Rod Ends for automotive and industrial use. Precisely crafted for reliability and strength.
Regular price
$45.99
Regular price
Sale price
$45.99
Unit price
per
Initiate Order
Chromoly Steel Rod Ends - Male/Female, Black Oxide Coated
$45.99
Quantity: 1
Claim Your Seller Account
Chromoly Steel Rod Ends - Male/Female, Black Oxide Coated
$45.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance your automotive and industrial applications with our Chromoly Steel Rod Ends. Made of heat-treated Chromoly Steel body and 52100 Bearing Steel ball with PTFE lining, these rod ends offer exceptional strength and durability. With precise dimensions and a static radial load capacity of 29,127 lbs, our rod ends ensure reliable performance in various industries. Meet your procurement needs with our quality Rod Ends.

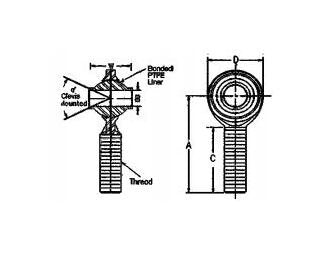

Product Specifications
Specifications Approx Weight
0.79 lbs
Specifications A Length 0015 0015
3.375 in
Specifications A Mis Angle Ref
61
Specifications Ball Material
52100 Bearing Steel, Heat Treated Hrc58-64 Hard Chrome Plated
Specifications Body Material
Chromoly Steel, Heat Treated, Black Oxide Coated
Specifications B Dia 00025 00005
0.7500 in
Specifications C Length 0062 0031
2.000 in
Specifications D Dia 0010 0010
2.000 in
Specifications Liner Material
Ptfe Lined Optional, Add "T" To Suffix
Specifications N Thread Unf 3a
3/4-16
Specifications Rod End Variants
RECM-12T
Specifications Static Radial Load
29,127 lbs
Specifications Thread Type
Right
Specifications Type
Male
Specifications Warning
Prop 65 Warning: This product may contain chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Specifications W Width 0005 0005
1.500 in
