Chromoly Steel Rod Ends - Male/Female, Left/Right Variants
Chromoly Steel Rod Ends - Male/Female, Left/Right Variants
SKU:ROD-862dd0
Chromoly Steel Rod Ends - Superior quality for automotive and industrial use. Heat-treated with PTFE lining for durability and smooth operation.
Regular price
$34.99
Regular price
Sale price
$34.99
Unit price
per
Initiate Order
Chromoly Steel Rod Ends - Male/Female, Left/Right Variants
$34.99
Quantity: 1
Claim Your Seller Account
Chromoly Steel Rod Ends - Male/Female, Left/Right Variants
$34.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Experience superior durability and performance with our Chromoly Steel Rod Ends. Made from heat-treated Chromoly Steel and 52100 Bearing Steel, these rod ends are black oxide coated and PTFE lined for smooth operation. With precise specifications conforming to UNF 3A threading and static radial load of 25,000 lbs, these rod ends are ideal for automotive, industrial, and various industries. Enhance your equipment with reliability and strength that meets stringent industry standards.

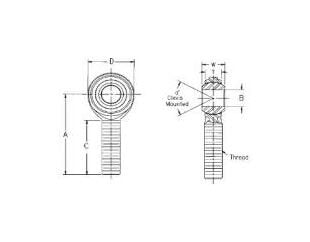

Product Specifications
Specifications Approx Weight
0.57 lbs
Specifications A Length 0015 0015
2.875 in
Specifications A Mis Angle Ref
24
Specifications Ball Material
52100 Bearing Steel, Heat Treated Hrc58-64 Hard Chrome Plated
Specifications Body Material
Chromoly Steel, Heat Treated, Black Oxide Coated
Specifications B Dia 00025 00005
0.6250 in
Specifications C Length 0062 0031
1.750 in
Specifications D Dia 0010 0010
1.750 in
Specifications Liner Material
Ptfe Lined Optional, Add "T" To Suffix
Specifications N Thread Unf 3a
3/4-16
Specifications Rod End Variants
RECH-1012T
Specifications Static Radial Load
25,000 lbs
Specifications Thread Type
Left
Specifications Type
Male
Specifications Warning
Prop 65 Warning: This product may contain chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Specifications W Width 0005 0005
0.875 in
