Chromoly Steel Rod Ends - Male/Female Variant, Left/Right Thread
Chromoly Steel Rod Ends - Male/Female Variant, Left/Right Thread
SKU:ROD-00f2a5
High-quality Chromoly Steel Rod Ends with Heat Treated Ball Material and PTFE Lining for durable and low-friction performance in automotive and industrial applications.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Chromoly Steel Rod Ends - Male/Female Variant, Left/Right Thread
$29.99
Quantity: 1
Claim Your Seller Account
Chromoly Steel Rod Ends - Male/Female Variant, Left/Right Thread
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Made of durable Chromoly Steel with Heat Treated Ball Material, these Rod Ends offer exceptional strength and corrosion resistance. The Black Oxide Coating ensures longevity, while the PTFE Lining reduces friction and wear. With precise dimensions meeting industry standards, these Rod Ends are ideal for automotive, industrial, and various applications, providing reliable performance under heavy loads.

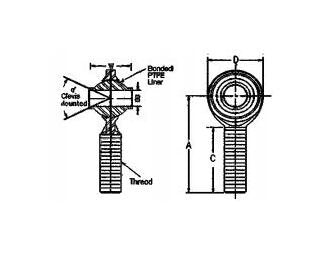

Product Specifications
Specifications Approx Weight
0.44 lbs
Specifications A Length 0015 0015
2.875 in
Specifications A Mis Angle Ref
65
Specifications Ball Material
52100 Bearing Steel, Heat Treated Hrc58-64 Hard Chrome Plated
Specifications Body Material
Chromoly Steel, Heat Treated, Black Oxide Coated
Specifications B Dia 00025 00005
0.5000 in
Specifications C Length 0062 0031
1.750 in
Specifications D Dia 0010 0010
1.750 in
Specifications Liner Material
Ptfe Lined Optional, Add "T" To Suffix
Specifications N Thread Unf 3a
5/8-18
Specifications Rod End Variants
RECM-810T
Specifications Static Radial Load
24,158 lbs
Specifications Thread Type
Right
Specifications Type
Male
Specifications Warning
Prop 65 Warning: This product may contain chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Specifications W Width 0005 0005
1.250 in
