Chromoly Steel Rod Ends - Male/Female Variants
Chromoly Steel Rod Ends - Male/Female Variants
SKU:ROD-61daaf
Upgrade your industrial equipment with our durable Chromoly Steel Rod Ends. Built to last, offering exceptional strength and performance for various applications.
Regular price
$25.99
Regular price
Sale price
$25.99
Unit price
per
Initiate Order
Chromoly Steel Rod Ends - Male/Female Variants
$25.99
Quantity: 1
Claim Your Seller Account
Chromoly Steel Rod Ends - Male/Female Variants
$25.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance your industrial equipment with our durable Chromoly Steel Rod Ends. Crafted from heat-treated Chromoly Steel with Black Oxide coating, paired with 52100 Bearing Steel balls that are HRC58-64 Hard Chrome Plated, these rod ends offer exceptional strength and performance. Suitable for various applications including automotive vehicles and industrial machines, these rod ends are built to withstand heavy-duty use. Available in Male/Female and Left/Right variants, our rod ends provide reliable articulation and smooth operation.

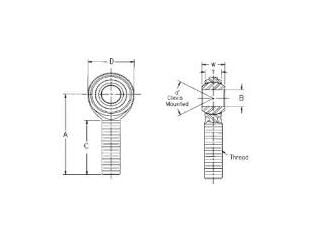

Product Specifications
Specifications Approx Weight
0.24 lbs
Specifications A Length 0015 0015
2.438 in
Specifications A Mis Angle Ref
20
Specifications Ball Material
52100 Bearing Steel, Heat Treated Hrc58-64 Hard Chrome Plated
Specifications Body Material
Chromoly Steel, Heat Treated, Black Oxide Coated
Specifications B Dia 00025 00005
0.5000 in
Specifications C Length 0062 0031
1.500 in
Specifications D Dia 0010 0010
1.312 in
Specifications Liner Material
Ptfe Lined Optional, Add "T" To Suffix
Specifications N Thread Unf 3a
1/2-20
Specifications Rod End Variants
RECHL-8T
Specifications Static Radial Load
17,000 lbs
Specifications Thread Type
Right
Specifications Type
Male
Specifications Warning
Prop 65 Warning: This product may contain chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Specifications W Width 0005 0005
0.625 in
