Chromoly Steel Rod Ends - Male Thread, 52100 Bearing Steel Ball, PTFE Lined Option
Chromoly Steel Rod Ends - Male Thread, 52100 Bearing Steel Ball, PTFE Lined Option
SKU:ROD-7f38d7
Premium Chromoly Steel Rod Ends for precision and durability. Ideal for high-load applications. Meets industry standards.
Regular price
$32.99
Regular price
Sale price
$32.99
Unit price
per
Initiate Order
Chromoly Steel Rod Ends - Male Thread, 52100 Bearing Steel Ball, PTFE Lined Option
$32.99
Quantity: 1
Claim Your Seller Account
Chromoly Steel Rod Ends - Male Thread, 52100 Bearing Steel Ball, PTFE Lined Option
$32.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance your mechanical assemblies with our high-quality Chromoly Steel Rod Ends. Crafted with precision, these rod ends feature a 52100 Bearing Steel ball, heat-treated Chromoly Steel body, and optional PTFE lining for superior performance. Meeting stringent industry standards, including a Static Radial Load of 25,000 lbs and a Prop 65 Warning disclosure, these rod ends are ideal for a wide range of applications.

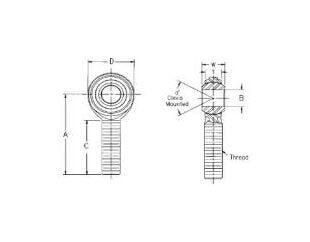

Product Specifications
Specifications Approx Weight
0.57 lbs
Specifications A Length 0015 0015
2.875 in
Specifications A Mis Angle Ref
24
Specifications Ball Material
52100 Bearing Steel, Heat Treated Hrc58-64 Hard Chrome Plated
Specifications Body Material
Chromoly Steel, Heat Treated, Black Oxide Coated
Specifications B Dia 00025 00005
0.6250 in
Specifications C Length 0062 0031
1.750 in
Specifications D Dia 0010 0010
1.750 in
Specifications Liner Material
Ptfe Lined Optional, Add "T" To Suffix
Specifications N Thread Unf 3a
3/4-16
Specifications Rod End Variants
RECHL-1012T
Specifications Static Radial Load
25,000 lbs
Specifications Thread Type
Right
Specifications Type
Male
Specifications Warning
Prop 65 Warning: This product may contain chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Specifications W Width 0005 0005
0.875 in
