Chromoly Steel Rod Ends - Male Thread, PTFE Lined
Chromoly Steel Rod Ends - Male Thread, PTFE Lined
SKU:ROD-827001
Premium Chromoly Steel Rod Ends for automotive and industrial use. Male Thread, PTFE Lined, superior durability.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Chromoly Steel Rod Ends - Male Thread, PTFE Lined
$29.99
Quantity: 1
Claim Your Seller Account
Chromoly Steel Rod Ends - Male Thread, PTFE Lined
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance your automotive and industrial applications with our top-quality Chromoly Steel Rod Ends. Crafted from heat-treated Chromoly Steel with a Black Oxide coating, and featuring a 52100 Bearing Steel ball with Hard Chrome Plating and PTFE lining. Designed for durability and precision, these Rod Ends offer a static radial load of 21,219 lbs. Ideal for a wide range of industries, these Male Thread Rod Ends meet stringent quality standards and ensure reliable performance.
Ready to Grow Without Cash Flow Constraints?

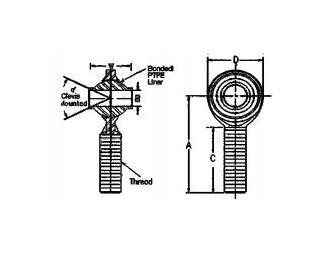

Product Specifications
Specifications Approx Weight
0.51 lbs
Specifications A Length 0015 0015
2.875 in
Specifications A Mis Angle Ref
64
Specifications Ball Material
52100 Bearing Steel, Heat Treated Hrc58-64 Hard Chrome Plated
Specifications Body Material
Chromoly Steel, Heat Treated, Black Oxide Coated
Specifications B Dia 00025 00005
0.6250 in
Specifications C Length 0062 0031
1.750 in
Specifications D Dia 0010 0010
1.750 in
Specifications Liner Material
Ptfe Lined Optional, Add "T" To Suffix
Specifications N Thread Unf 3a
5/8-18
Specifications Rod End Variants
RECHM-10T
Specifications Static Radial Load
21,219 lbs
Specifications Thread Type
Left
Specifications Type
Male
Specifications Warning
Prop 65 Warning: This product may contain chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Specifications W Width 0005 0005
1.375 in
