Chromoly Steel Rod Ends - Male Thread, PTFE Lined, 1/2-20 UNF
Chromoly Steel Rod Ends - Male Thread, PTFE Lined, 1/2-20 UNF
SKU:ROD-b43278
Premium Chromoly Steel Rod Ends for automotive, industrial, and diverse industries. Heat-treated, PTFE lined, and compliant with industry standards.
Regular price
$34.99
Regular price
Sale price
$34.99
Unit price
per
Initiate Order
Chromoly Steel Rod Ends - Male Thread, PTFE Lined, 1/2-20 UNF
$34.99
Quantity: 1
Claim Your Seller Account
Chromoly Steel Rod Ends - Male Thread, PTFE Lined, 1/2-20 UNF
$34.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance the performance and durability of your automotive vehicles, industrial machines, and various industries with our Chromoly Steel Rod Ends. Crafted from heat-treated Chromoly Steel with a Black Oxide coating and 52100 Bearing Steel ball material, these rod ends offer exceptional strength and reliability. Featuring a 65° misalignment angle, PTFE lined for smooth operation, and meeting stringent industry standards, these rod ends deliver superior performance under demanding conditions.
Product Specifications

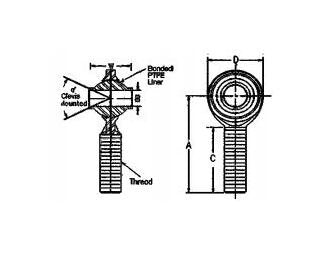

Specifications Approx Weight
0.33 lbs
Specifications A Length 0015 0015
2.625 in
Specifications A Mis Angle Ref
65
Specifications Ball Material
52100 Bearing Steel, Heat Treated Hrc58-64 Hard Chrome Plated
Specifications Body Material
Chromoly Steel, Heat Treated, Black Oxide Coated
Specifications B Dia 00025 00005
0.5000 in
Specifications C Length 0062 0031
1.625 in
Specifications D Dia 0010 0010
1.500 in
Specifications Liner Material
Ptfe Lined Optional, Add "T" To Suffix
Specifications N Thread Unf 3a
1/2-20
Specifications Rod End Variants
RECHM-8T
Specifications Static Radial Load
16,240 lbs
Specifications Thread Type
Left
Specifications Type
Male
Specifications Warning
Prop 65 Warning: This product may contain chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Specifications W Width 0005 0005
1.250 in
