Chromoly Steel Rod Ends - Male Type 3/4-16 UNF 3A
Chromoly Steel Rod Ends - Male Type 3/4-16 UNF 3A
SKU:ROD-7d7f31
Enhance machinery with our durable Chromoly Steel Rod Ends - Male Type 3/4-16 UNF 3A, featuring heat-treated materials, PTFE lined option, and high load capacity.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Chromoly Steel Rod Ends - Male Type 3/4-16 UNF 3A
$39.99
Quantity: 1
Claim Your Seller Account
Chromoly Steel Rod Ends - Male Type 3/4-16 UNF 3A
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your industrial or automotive machinery with our Chromoly Steel Rod Ends featuring 52100 Bearing Steel ball, Chromoly Steel body, heat treatment for durability, and black oxide coating. Designed with precision, it boasts a 24° Misalignment Angle, PTFE-lined option, and exceeds a static radial load of 25,000 lbs. Compliant with industry standards, this rod end guarantees high-performance and reliability for your applications.

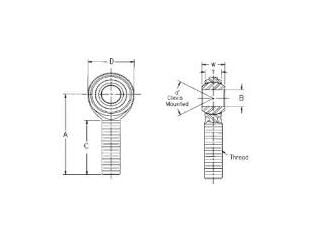

Product Specifications
Specifications Approx Weight
0.57 lbs
Specifications A Length 0015 0015
2.875 in
Specifications A Mis Angle Ref
24
Specifications Ball Material
52100 Bearing Steel, Heat Treated Hrc58-64 Hard Chrome Plated
Specifications Body Material
Chromoly Steel, Heat Treated, Black Oxide Coated
Specifications B Dia 00025 00005
0.7500 in
Specifications C Length 0062 0031
1.750 in
Specifications D Dia 0010 0010
1.750 in
Specifications Liner Material
Ptfe Lined Optional, Add "T" To Suffix
Specifications N Thread Unf 3a
3/4-16
Specifications Rod End Variants
RECHL-12T
Specifications Static Radial Load
25,000 lbs
Specifications Thread Type
Right
Specifications Type
Male
Specifications Warning
Prop 65 Warning: This product may contain chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Specifications W Width 0005 0005
0.875 in
