Chromoly Steel Rod Ends - Male Type, 52100 Bearing Steel
Chromoly Steel Rod Ends - Male Type, 52100 Bearing Steel
SKU:ROD-108a06
Upgrade your machinery with durable Chromoly Steel Rod Ends for precise articulation and high load-bearing capacity.
Regular price
$34.99
Regular price
Sale price
$34.99
Unit price
per
Initiate Order
Chromoly Steel Rod Ends - Male Type, 52100 Bearing Steel
$34.99
Quantity: 1
Claim Your Seller Account
Chromoly Steel Rod Ends - Male Type, 52100 Bearing Steel
$34.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance your industrial machinery with our Chromoly Steel Rod Ends. Made from heat-treated Chromoly Steel with a Hard Chrome Plated 52100 Bearing Steel ball, these rod ends boast high strength and durability. With precise dimensions and UNF 3A threading, they offer reliable performance under heavy static radial loads up to 25,000 lbs. The optional PTFE lining ensures smooth articulation. Compliant with industry standards and Prop 65 regulations.

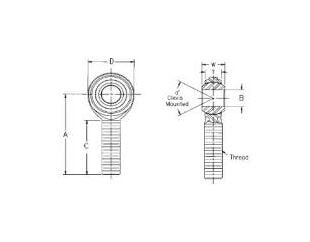

Product Specifications
Specifications Approx Weight
0.57 lbs
Specifications A Length 0015 0015
2.875 in
Specifications A Mis Angle Ref
24
Specifications Ball Material
52100 Bearing Steel, Heat Treated Hrc58-64 Hard Chrome Plated
Specifications Body Material
Chromoly Steel, Heat Treated, Black Oxide Coated
Specifications B Dia 00025 00005
0.5000 in
Specifications C Length 0062 0031
1.750 in
Specifications D Dia 0010 0010
1.750 in
Specifications Liner Material
Ptfe Lined Optional, Add "T" To Suffix
Specifications N Thread Unf 3a
3/4-16
Specifications Rod End Variants
RECHL-812T
Specifications Static Radial Load
25,000 lbs
Specifications Thread Type
Right
Specifications Type
Male
Specifications Warning
Prop 65 Warning: This product may contain chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Specifications W Width 0005 0005
0.875 in
