Chromoly Steel Rod Ends - Male Type, 52100 Bearing Steel, Heat Treated
Chromoly Steel Rod Ends - Male Type, 52100 Bearing Steel, Heat Treated
SKU:ROD-8732e3
High-quality Chromoly steel rod ends with 52100 Bearing Steel balls, ideal for heavy-duty applications. Compliance with Prop 65.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Chromoly Steel Rod Ends - Male Type, 52100 Bearing Steel, Heat Treated
$29.99
Quantity: 1
Claim Your Seller Account
Chromoly Steel Rod Ends - Male Type, 52100 Bearing Steel, Heat Treated
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Chromoly Steel Rod Ends are engineered for precision and durability, featuring 52100 Bearing Steel balls, Heat Treated Chromoly Steel body with Black Oxide Coating, and PTFE Lined optional variant. With dimensions meeting industry standards, including UNF 3A thread, these rod ends offer high static radial load capacity of 17,000 lbs. Complying with Prop 65, they are ideal for various applications where quality and performance are paramount.

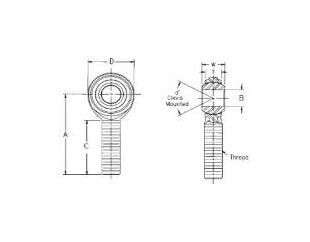

Product Specifications
Specifications Approx Weight
0.24 lbs
Specifications A Length 0015 0015
2.438 in
Specifications A Mis Angle Ref
20
Specifications Ball Material
52100 Bearing Steel, Heat Treated Hrc58-64 Hard Chrome Plated
Specifications Body Material
Chromoly Steel, Heat Treated, Black Oxide Coated
Specifications B Dia 00025 00005
0.5000 in
Specifications C Length 0062 0031
1.500 in
Specifications D Dia 0010 0010
1.312 in
Specifications Liner Material
Ptfe Lined Optional, Add "T" To Suffix
Specifications N Thread Unf 3a
1/2-20
Specifications Rod End Variants
RECH-8T
Specifications Static Radial Load
17,000 lbs
Specifications Thread Type
Left
Specifications Type
Male
Specifications Warning
Prop 65 Warning: This product may contain chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Specifications W Width 0005 0005
0.625 in
