Chromoly Steel Rod Ends - Male Type, Black Oxide Coated, UNF 3A Thread 5/8-18
Chromoly Steel Rod Ends - Male Type, Black Oxide Coated, UNF 3A Thread 5/8-18
SKU:ROD-c8cdd8
Premium Chromoly Steel Rod Ends for superior strength and precision. Compliant with industry standards.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Chromoly Steel Rod Ends - Male Type, Black Oxide Coated, UNF 3A Thread 5/8-18
$24.99
Quantity: 1
Claim Your Seller Account
Chromoly Steel Rod Ends - Male Type, Black Oxide Coated, UNF 3A Thread 5/8-18
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

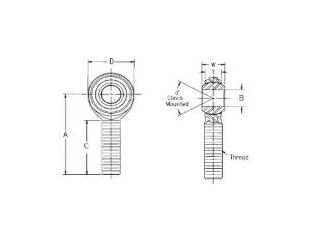

Enhance your mechanical assemblies with our Chromoly Steel Rod Ends meticulously crafted from 52100 Bearing Steel with Hrc58-64 Hard Chrome plating for unparalleled strength. Featuring precise dimensions (0.6250" B Dia, 1.500" D Dia, 0.750" Width), these rod ends withstand static radial loads up to 18,000 lbs. Opt for PTFE lined variants for added durability. Compliant with industry-leading specifications, our products meet the highest performance standards for a broad range of applications.
Product Specifications
Specifications Approx Weight
0.36 lbs
Specifications A Length 0015 0015
2.625 in
Specifications A Mis Angle Ref
26
Specifications Ball Material
52100 Bearing Steel, Heat Treated Hrc58-64 Hard Chrome Plated
Specifications Body Material
Chromoly Steel, Heat Treated, Black Oxide Coated
Specifications B Dia 00025 00005
0.6250 in
Specifications C Length 0062 0031
1.625 in
Specifications D Dia 0010 0010
1.500 in
Specifications Liner Material
Ptfe Lined Optional, Add "T" To Suffix
Specifications N Thread Unf 3a
5/8-18
Specifications Rod End Variants
RECHL-10T
Specifications Static Radial Load
18,000 lbs
Specifications Thread Type
Right
Specifications Type
Male
Specifications Warning
Prop 65 Warning: This product may contain chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Specifications W Width 0005 0005
0.750 in
