Chromoly Steel Rod Ends - Male Variant
Chromoly Steel Rod Ends - Male Variant
SKU:ROD-192a46
Premium Chromoly Steel Rod Ends for automotive and industrial use. High strength, PTFE Lined, and UNF 3A threaded for durability and precision.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Chromoly Steel Rod Ends - Male Variant
$29.99
Quantity: 1
Claim Your Seller Account
Chromoly Steel Rod Ends - Male Variant
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Our Chromoly Steel Rod Ends are precision-engineered for durability and performance. Made from heat-treated Chromoly Steel with Black Oxide coating and 52100 Bearing Steel balls Hard Chrome Plated and PTFE Lined. Designed for automotive vehicles, industrial machines, and various industries. With UNF 3A thread, 24° misalignment angle, and a static radial load capacity of 25,000 lbs, these rod ends are reliable and versatile for a wide range of applications.

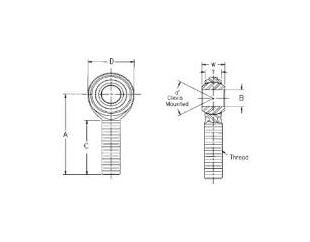

Product Specifications
Specifications Approx Weight
0.57 lbs
Specifications A Length 0015 0015
2.875 in
Specifications A Mis Angle Ref
24
Specifications Ball Material
52100 Bearing Steel, Heat Treated Hrc58-64 Hard Chrome Plated
Specifications Body Material
Chromoly Steel, Heat Treated, Black Oxide Coated
Specifications B Dia 00025 00005
0.7500 in
Specifications C Length 0062 0031
1.750 in
Specifications D Dia 0010 0010
1.750 in
Specifications Liner Material
Ptfe Lined Optional, Add "T" To Suffix
Specifications N Thread Unf 3a
3/4-16
Specifications Rod End Variants
RECH-12T
Specifications Static Radial Load
25,000 lbs
Specifications Thread Type
Left
Specifications Type
Male
Specifications Warning
Prop 65 Warning: This product may contain chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Specifications W Width 0005 0005
0.875 in
