Chromoly Steel Rod Ends - Male Variant
Chromoly Steel Rod Ends - Male Variant
SKU:ROD-c393c9
Durable Chromoly Steel Rod Ends for automotive and industrial applications, featuring heat-treated materials for superior performance.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Chromoly Steel Rod Ends - Male Variant
$29.99
Quantity: 1
Claim Your Seller Account
Chromoly Steel Rod Ends - Male Variant
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Chromoly Steel Rod Ends Male Variant is a durable and high-performance component designed for use in automotive vehicles, industrial machines, and various other industries. Constructed with Chromoly Steel body material and 52100 Bearing Steel balls, heat treated for superior strength and resilience. This rod end features a Black Oxide coating and HRC58-64 Hard Chrome Plated PTFE Lined ball for smooth and reliable operation. With precise specifications and a left-hand thread type, it meets the demands of rigorous applications while ensuring optimal performance and longevity.

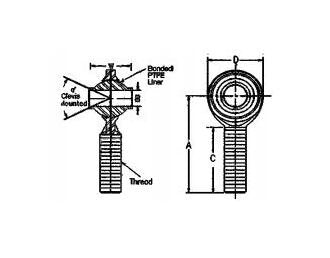

Product Specifications
Specifications Approx Weight
0.44 lbs
Specifications A Length 0015 0015
2.875 in
Specifications A Mis Angle Ref
65
Specifications Ball Material
52100 Bearing Steel, Heat Treated Hrc58-64 Hard Chrome Plated
Specifications Body Material
Chromoly Steel, Heat Treated, Black Oxide Coated
Specifications B Dia 00025 00005
0.5000 in
Specifications C Length 0062 0031
1.750 in
Specifications D Dia 0010 0010
1.750 in
Specifications Liner Material
Ptfe Lined Optional, Add "T" To Suffix
Specifications N Thread Unf 3a
5/8-18
Specifications Rod End Variants
RECHM-810T
Specifications Static Radial Load
24,158 lbs
Specifications Thread Type
Left
Specifications Type
Male
Specifications Warning
Prop 65 Warning: This product may contain chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Specifications W Width 0005 0005
1.250 in
