Chromoly Steel Rod Ends - Male Variant
Chromoly Steel Rod Ends - Male Variant
SKU:ROD-f552c7
Durable Chromoly Steel Rod Ends - Male Variant for automotive and industrial use. Heat-treated, PTFE lined, and UNF 3A threaded.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Chromoly Steel Rod Ends - Male Variant
$49.99
Quantity: 1
Claim Your Seller Account
Chromoly Steel Rod Ends - Male Variant
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance your automotive and industrial applications with our top-quality Chromoly Steel Rod Ends - Male Variant. Crafted from heat-treated Chromoly Steel with a black oxide coating and 52100 Bearing Steel ball material, these rod ends are durable, resilient, and PTFE lined for reduced friction. Compliant with industry standards, these rod ends offer precise dimensions, a static radial load capacity of 14,449 lbs, and are threaded as per UNF 3A standards for a secure fit. Upgrade your machinery with reliability and performance that goes the distance.

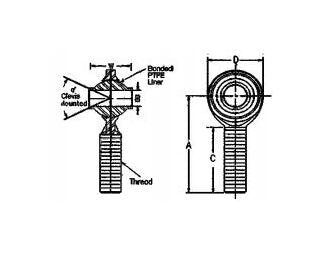

Product Specifications
Specifications Approx Weight
0.22 lbs
Specifications A Length 0015 0015
2.438 in
Specifications A Mis Angle Ref
58
Specifications Ball Material
52100 Bearing Steel, Heat Treated Hrc58-64 Hard Chrome Plated
Specifications Body Material
Chromoly Steel, Heat Treated, Black Oxide Coated
Specifications B Dia 00025 00005
0.4375 in
Specifications C Length 0062 0031
1.500 in
Specifications D Dia 0010 0010
1.312 in
Specifications Liner Material
Ptfe Lined Optional, Add "T" To Suffix
Specifications N Thread Unf 3a
7/16-20
Specifications Rod End Variants
RECHM-7T
Specifications Static Radial Load
14,449 lbs
Specifications Thread Type
Right
Specifications Type
Male
Specifications Warning
Prop 65 Warning: This product may contain chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Specifications W Width 0005 0005
1.000 in
