Chromoly Steel Rod Ends - Male Variant
$29.99
Quantity: 1
Claim Your Seller Account
Chromoly Steel Rod Ends - Male Variant
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance efficiency and durability in automotive and industrial applications with our Chromoly Steel Rod Ends. Crafted from Heat Treated Chromoly Steel with Black Oxide coating, and 52100 Bearing Steel Ball Material for superior performance. PTFE Lined for smooth operation, contributing to a Static Radial Load capacity of 11,050 lbs. Compliant with industry standards, ensuring reliability in critical operations.

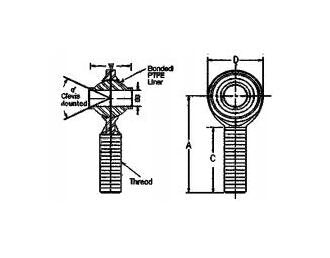

Product Specifications
Specifications Approx Weight
0.14 lbs
Specifications A Length 0015 0015
2.125 in
Specifications A Mis Angle Ref
55
Specifications Ball Material
52100 Bearing Steel, Heat Treated Hrc58-64 Hard Chrome Plated
Specifications Body Material
Chromoly Steel, Heat Treated, Black Oxide Coated
Specifications B Dia 00025 00005
0.3750 in
Specifications C Length 0062 0031
1.375 in
Specifications D Dia 0010 0010
1.125 in
Specifications Liner Material
Ptfe Lined Optional, Add "T" To Suffix
Specifications N Thread Unf 3a
3/8-24
Specifications Rod End Variants
RECHM-6T
Specifications Static Radial Load
11,050 lbs
Specifications Thread Type
Right
Specifications Type
Male
Specifications Warning
Prop 65 Warning: This product may contain chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Specifications W Width 0005 0005
0.875 in
