Chromoly Steel Rod Ends - Male Variant
Chromoly Steel Rod Ends - Male Variant
SKU:ROD-139692
Durable Chromoly Steel Rod Ends for automotive and industrial applications. Heat-treated with PTFE-lined balls for superior strength and performance.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Chromoly Steel Rod Ends - Male Variant
$29.99
Quantity: 1
Claim Your Seller Account
Chromoly Steel Rod Ends - Male Variant
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance the performance and durability of your automotive vehicles and industrial machines with our Chromoly Steel Rod Ends. Crafted from heat-treated Chromoly Steel with Black Oxide coating and 52100 Bearing Steel balls, these Rod Ends offer exceptional strength and corrosion resistance. The PTFE-lined design ensures smooth operation, while meeting stringent industry standards for quality and reliability.

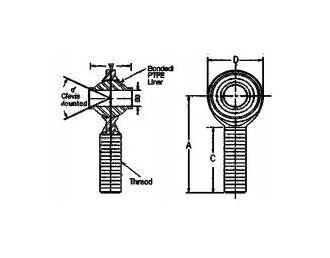

Product Specifications
Specifications Approx Weight
0.22 lbs
Specifications A Length 0015 0015
2.438 in
Specifications A Mis Angle Ref
58
Specifications Ball Material
52100 Bearing Steel, Heat Treated Hrc58-64 Hard Chrome Plated
Specifications Body Material
Chromoly Steel, Heat Treated, Black Oxide Coated
Specifications B Dia 00025 00005
0.4375 in
Specifications C Length 0062 0031
1.500 in
Specifications D Dia 0010 0010
1.312 in
Specifications Liner Material
Ptfe Lined Optional, Add "T" To Suffix
Specifications N Thread Unf 3a
7/16-20
Specifications Rod End Variants
RECH-7T
Specifications Static Radial Load
14,449 lbs
Specifications Thread Type
Left
Specifications Type
Male
Specifications Warning
Prop 65 Warning: This product may contain chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Specifications W Width 0005 0005
1.000 in
