Chromoly Steel Rod Ends, Male Variant
Chromoly Steel Rod Ends, Male Variant
SKU:ROD-a32259
High-quality Chromoly Steel Rod Ends for automotive and industrial use. Heat treated with PTFE lining for durability and smooth operation.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Chromoly Steel Rod Ends, Male Variant
$24.99
Quantity: 1
Claim Your Seller Account
Chromoly Steel Rod Ends, Male Variant
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your automotive or industrial machinery with our Chromoly Steel Rod Ends. Constructed with heat-treated Chromoly Steel body, 52100 Bearing Steel ball material, and PTFE lining, these rod ends ensure durability and smooth operation. Designed for UNF 3A thread type, these rod ends meet strict industry standards for static radial load and misalignment angle, providing reliable performance in various applications.

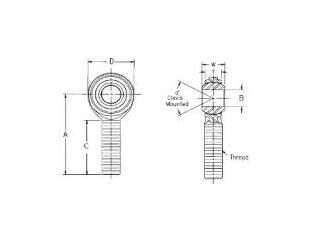

Product Specifications
Specifications Approx Weight
0.30 lbs
Specifications A Length 0015 0015
2.625 in
Specifications A Mis Angle Ref
26
Specifications Ball Material
52100 Bearing Steel, Heat Treated Hrc58-64 Hard Chrome Plated
Specifications Body Material
Chromoly Steel, Heat Treated, Black Oxide Coated
Specifications B Dia 00025 00005
0.5000 in
Specifications C Length 0062 0031
1.625 in
Specifications D Dia 0010 0010
1.500 in
Specifications Liner Material
Ptfe Lined Optional, Add "T" To Suffix
Specifications N Thread Unf 3a
5/8-18
Specifications Rod End Variants
RECH-810T
Specifications Static Radial Load
18,000 lbs
Specifications Thread Type
Left
Specifications Type
Male
Specifications Warning
Prop 65 Warning: This product may contain chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Specifications W Width 0005 0005
0.750 in
