Chromoly Steel Rod Ends - Male Variant, Black Oxide Coated
Chromoly Steel Rod Ends - Male Variant, Black Oxide Coated
SKU:ROD-5081cd
High-performance Chromoly Steel Rod Ends with Black Oxide Coating for automotive and industrial applications.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Chromoly Steel Rod Ends - Male Variant, Black Oxide Coated
$24.99
Quantity: 1
Claim Your Seller Account
Chromoly Steel Rod Ends - Male Variant, Black Oxide Coated
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance your automotive and industrial equipment with our Chromoly Steel Rod Ends. Crafted from heat-treated Chromoly Steel with Black Oxide coating, these durable rod ends feature 52100 Bearing Steel balls, PTFE lining, and Left Thread type. Compliant with industry standards for Static Radial Load and Prop 65 Warning, these rod ends offer superior performance and longevity.

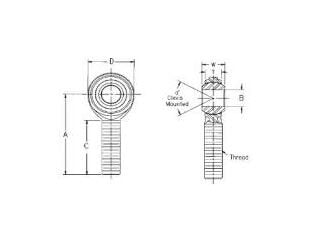

Product Specifications
Specifications Approx Weight
0.57 lbs
Specifications A Length 0015 0015
2.875 in
Specifications A Mis Angle Ref
24
Specifications Ball Material
52100 Bearing Steel, Heat Treated Hrc58-64 Hard Chrome Plated
Specifications Body Material
Chromoly Steel, Heat Treated, Black Oxide Coated
Specifications B Dia 00025 00005
0.5000 in
Specifications C Length 0062 0031
1.750 in
Specifications D Dia 0010 0010
1.750 in
Specifications Liner Material
Ptfe Lined Optional, Add "T" To Suffix
Specifications N Thread Unf 3a
3/4-16
Specifications Rod End Variants
RECH-812T
Specifications Static Radial Load
25,000 lbs
Specifications Thread Type
Left
Specifications Type
Male
Specifications Warning
Prop 65 Warning: This product may contain chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Specifications W Width 0005 0005
0.875 in
