Chromoly Steel Rod Ends - Male Variant, Left Thread
Chromoly Steel Rod Ends - Male Variant, Left Thread
SKU:ROD-49e8a8
Durable Chromoly Steel Rod Ends for automotive & industrial use. Heat-treated with Black Oxide coating & PTFE lining. Compliant with Prop 65.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Chromoly Steel Rod Ends - Male Variant, Left Thread
$24.99
Quantity: 1
Claim Your Seller Account
Chromoly Steel Rod Ends - Male Variant, Left Thread
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance your automotive and industrial applications with our Chromoly Steel Rod Ends. Made of heat-treated Chromoly Steel and 52100 Bearing Steel, these rod ends are durable and reliable. Featuring Black Oxide coating and PTFE lining, these rod ends offer exceptional performance. With precise specifications and compliance with Prop 65, our rod ends are ideal for multiple industries.

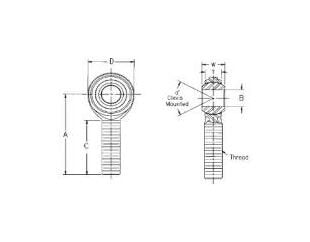

Product Specifications
Specifications Approx Weight
0.36 lbs
Specifications A Length 0015 0015
2.625 in
Specifications A Mis Angle Ref
26
Specifications Ball Material
52100 Bearing Steel, Heat Treated Hrc58-64 Hard Chrome Plated
Specifications Body Material
Chromoly Steel, Heat Treated, Black Oxide Coated
Specifications B Dia 00025 00005
0.6250 in
Specifications C Length 0062 0031
1.625 in
Specifications D Dia 0010 0010
1.500 in
Specifications Liner Material
Ptfe Lined Optional, Add "T" To Suffix
Specifications N Thread Unf 3a
5/8-18
Specifications Rod End Variants
RECH-10T
Specifications Static Radial Load
18,000 lbs
Specifications Thread Type
Left
Specifications Type
Male
Specifications Warning
Prop 65 Warning: This product may contain chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Specifications W Width 0005 0005
0.750 in
