The Chromoly Steel Rod Ends XM/XF Series by Monroe delivers unparalleled durability and performance. Crafted from 6061-T6 Aluminum body material and 52100 Bearing Steel ball material, heat-treated and hard chrome plated for superior strength. With precise dimensions and threaded for a secure fit, these rod ends are ideal for automotive, industrial, and various other applications.

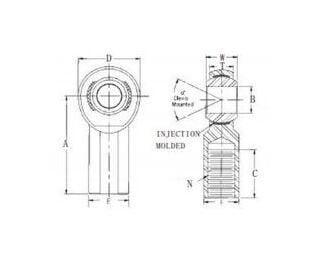

Product Specifications
Specifications Approx Weight
2.11 lbs
Specifications A Length 0015 0015
4.125 in
Specifications A Mis Angle Ref
17
Specifications Ball
1.875 in
Specifications Ball Material
52100 Bearing Steel, Heat Treated Hrc58-64 Hard Chrome Plated
Specifications Body Material
Chromoly Steel, Heat Treated Hard Chrome Plated
Specifications B Dia 00025 00005
1.0000 in
Specifications C Length 0062 0031
2.125 in
Specifications D Dia 0010 0010
2.750 in
Specifications N Thread Unf 3a
1 1/4-12
Specifications Race Material
Nylon (Teflon®/Kevlar®)
Specifications Rod End Variants
RECSR-16
Specifications Static Radial Load
76,200 lbs
Specifications Thread Type
Left
Specifications Type
Female
Specifications T Width
1.015 in
Specifications Warning
Prop 65 Warning: This product may contain chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Specifications W Width 0005 0005
1.375 in
