Chromoly Steel Rod Ends XM/XF Series
Chromoly Steel Rod Ends XM/XF Series
SKU:ROD-23cc78
Heavy Duty Chromoly Steel Rod Ends for automotive and industrial use. Precisely crafted for durability and strength. Compliant with industry standards.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Chromoly Steel Rod Ends XM/XF Series
$24.99
Quantity: 1
Claim Your Seller Account
Chromoly Steel Rod Ends XM/XF Series
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance your automotive and industrial applications with our Heavy Duty Chromoly Steel Rod Ends from Monroe. Crafted from 6061-T6 Aluminum body material and 52100 Bearing Steel balls heat-treated for durability, these male/female variants with left/right options deliver reliability and strength. With precise dimensions and a Static Radial Load capacity of 7,639 lbs, our Rod Ends are ideal for heavy-duty usage. Complying with industrial standards, our products meet the needs of various industries and ensure performance excellence.
Ready to Grow Without Cash Flow Constraints?

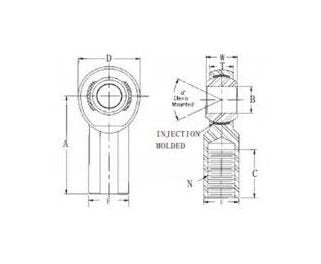

Product Specifications
Specifications Approx Weight
0.09 lbs
Specifications A Length 0015 0015
1.375 in
Specifications A Mis Angle Ref
14
Specifications Ball
0.625 in
Specifications Ball Material
52100 Bearing Steel, Heat Treated Hrc58-64 Hard Chrome Plated
Specifications Body Material
Chromoly Steel, Heat Treated Hard Chrome Plated
Specifications B Dia 00025 00005
0.3125 in
Specifications C Length 0062 0031
0.750 in
Specifications D Dia 0010 0010
0.875 in
Specifications N Thread Unf 3a
5/16-24
Specifications Race Material
Nylon (Teflon®/Kevlar®)
Specifications Rod End Variants
RECSX-5
Specifications Static Radial Load
7,639 lbs
Specifications Thread Type
Right
Specifications Type
Female
Specifications T Width
0.344 in
Specifications Warning
Prop 65 Warning: This product may contain chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Specifications W Width 0005 0005
0.437 in
