Chromoly Steel XM/XF Rod Ends
Chromoly Steel XM/XF Rod Ends
SKU:ROD-8c766c
High-performance Chromoly Steel Rod Ends for automotive and industrial use. Female variant, Left thread type. Strong, durable, and compliant with industry standards.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Chromoly Steel XM/XF Rod Ends
$24.99
Quantity: 1
Claim Your Seller Account
Chromoly Steel XM/XF Rod Ends
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance your engineering projects with our heavy-duty Chromoly Steel Rod Ends from Monroe. Crafted with precision using 6061-T6 aluminum body and 52100 Bearing Steel ball material, heat treated for maximum durability. These rod ends are available in Female variant, Left thread type, and comply with industry standards. Ideal for automotive vehicles, industrial machines, and various other applications.

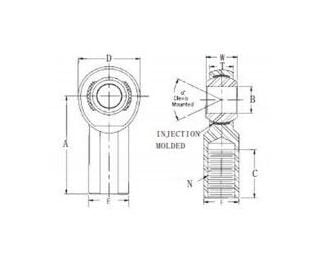

Product Specifications
Specifications Approx Weight
0.19 lbs
Specifications A Length 0015 0015
1.812 in
Specifications A Mis Angle Ref
14
Specifications Ball
0.812 in
Specifications Ball Material
52100 Bearing Steel, Heat Treated Hrc58-64 Hard Chrome Plated
Specifications Body Material
Chromoly Steel, Heat Treated Hard Chrome Plated
Specifications B Dia 00025 00005
0.4375 in
Specifications C Length 0062 0031
1.062 in
Specifications D Dia 0010 0010
1.125 in
Specifications N Thread Unf 3a
7/16-20
Specifications Race Material
Nylon (Teflon®/Kevlar®)
Specifications Rod End Variants
RECSR-7
Specifications Static Radial Load
10,235 lbs
Specifications Thread Type
Left
Specifications Type
Female
Specifications T Width
0.437 in
Specifications Warning
Prop 65 Warning: This product may contain chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Specifications W Width 0005 0005
0.562 in
