Chromoly Steel XM/XF Rod Ends
Chromoly Steel XM/XF Rod Ends
SKU:ROD-4661f7
Enhance your machines with Chromoly Steel Rod Ends for durability & high-performance in automotive & industrial applications.
Regular price
$34.99
Regular price
Sale price
$34.99
Unit price
per
Initiate Order
Chromoly Steel XM/XF Rod Ends
$34.99
Quantity: 1
Claim Your Seller Account
Chromoly Steel XM/XF Rod Ends
$34.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your automotive vehicles or industrial machines with our Heavy Duty Chromoly Steel Rod Ends. Constructed from 6061-T6 Aluminum body material and 52100 Bearing Steel balls with HRC58-64 Hard Chrome Plating, these rod ends offer exceptional durability and performance. Featuring Male/Female and Left/Right variants, these rod ends meet stringent industry standards for high-load applications. With precise dimensions and a static radial load capacity of 10,235 lbs, these rod ends ensure reliable performance and longevity in various industries.
Ready to Grow Without Cash Flow Constraints?

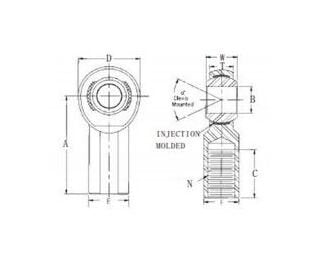

Product Specifications
Specifications Approx Weight
0.19 lbs
Specifications A Length 0015 0015
1.812 in
Specifications A Mis Angle Ref
14
Specifications Ball
0.S12 in
Specifications Ball Material
52100 Bearing Steel, Heat Treated Hrc58-64 Hard Chrome Plated
Specifications Body Material
Chromoly Steel, Heat Treated Hard Chrome Plated
Specifications B Dia 00025 00005
0.4375 in
Specifications C Length 0062 0031
1.062 in
Specifications D Dia 0010 0010
1.125 in
Specifications N Thread Unf 3a
7/16-20
Specifications Race Material
Nylon (Teflon®/Kevlar®)
Specifications Rod End Variants
RECSX-7
Specifications Static Radial Load
10,235 lbs
Specifications Thread Type
Right
Specifications Type
Female
Specifications T Width
0.437 in
Specifications Warning
Prop 65 Warning: This product may contain chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Specifications W Width 0005 0005
0.562 in
