CHT White Soft Paste RTV Silicone Adhesive Sealant
CHT White Soft Paste RTV Silicone Adhesive Sealant
SKU:1PA-66511f
CHT White Soft Paste RTV Silicone Adhesive Sealant - Fast skinning, UL certified, exceptional thermal conductivity.
Regular price
$14.99
Regular price
Sale price
$14.99
Unit price
per
Initiate Order
CHT White Soft Paste RTV Silicone Adhesive Sealant
$14.99
Quantity: 1
Claim Your Seller Account
CHT White Soft Paste RTV Silicone Adhesive Sealant
$14.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

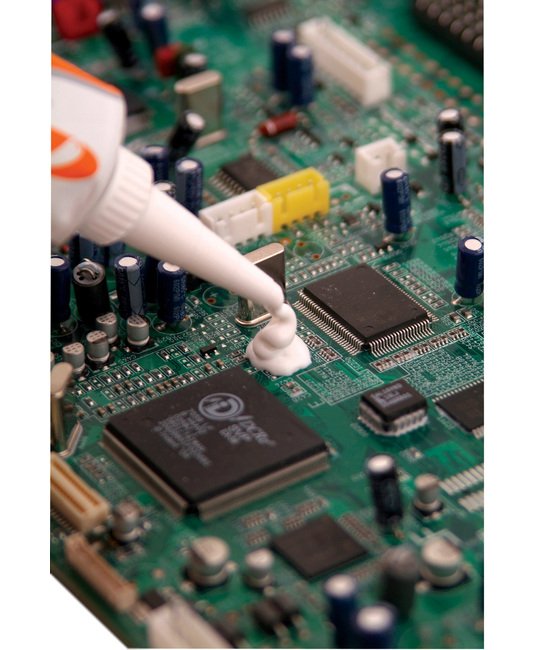

Meet your sealing needs with CHT White Soft Paste RTV Silicone Adhesive Sealant. This 1-part adhesive offers excellent thermal conductivity, non-corrosiveness, fast skinning properties, and UL certification. It withstands temperatures from -50 ºC to +220 ºC, making it ideal for various applications. With self-leveling rheology and self-bonding capabilities, this sealant ensures durable, non-shrinking bonds. Enjoy high dielectric strength and low shrinkage for reliable performance. Suitable for industrial, commercial, and institutional use.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Features
Good thermal conductivityNon-corrosiveFast skinningUL certified file number E334038
Specifications Appearance
White Soft Paste
Specifications A Part Viscosity
350000 MPa
Specifications Coefficient Of Thermal Expansion Cte Linear
198 ppm/ºC
Specifications Coefficient Of Thermal Expansion Cte Volumetric
475 ppm/ºC
Specifications Color
White
Specifications Cure Type
Acetone
Specifications Dielectric Constant At 1 Kilohertz Khz Frequency
4.9
Specifications Dielectric Strength
20 kV/mm
Specifications Dissipation Factor At 1 Kilohertz Khz Frequency
0.009
Specifications Durometer Shore A
65 duro
Specifications Elongation
94 %
Specifications Food And Drug Administration Fda
No
Specifications Lap Shear 304 Stainless Steel
2.6 kg/cm²
Specifications Lap Shear Aluminum
6 kg/cm²
Specifications Lap Shear Copper
3 kg/cm²
Specifications Linear Shrinkage
0.5 %
Specifications Maximum Cure Time At 25 Degree Celsius C Temperat
8 hours
Specifications Maximum Storage Temperature
40 ºC
Specifications Maximum Working Temperature
+220 ºC
Specifications Minimum Working Temperature
-50 ºC
Specifications Non Corrosive
Yes
Specifications Pack Type
1 Part
Specifications Rheology
Self Level
Specifications Room Temperature Vulcanizing Rtv Or Heat Cure
Room Temperature Vulcanizing (RTV)
Specifications Self Bonding
Yes
Specifications Sg
2.24
Specifications Shelf Life
9 months
Specifications Tack Free Time
<2 minutes
Specifications Tensile Strength
2.8 MPa
Specifications Test Conditions
After 7 days cure at 23º+/-2ºC and 50+/-5% humidity
Specifications Thermal Conductivity
1.55 W/m·K
Specifications Underwriters Laboratories Ul 94v 0
No
Specifications Volume Resistivity
1E+14 Ω·cm
