CHX Series Water-Cooled Capacitors - 1500 VRMS, 300 kVA
CHX Series Water-Cooled Capacitors - 1500 VRMS, 300 kVA
SKU:WAT-44e49b
High-performance water-cooled capacitors with 1500 VRMS, 300 kVA capacity - ideal for precision applications.
Regular price
$199.99
Regular price
Sale price
$199.99
Unit price
per
Initiate Order
CHX Series Water-Cooled Capacitors - 1500 VRMS, 300 kVA
$199.99
Quantity: 1
Claim Your Seller Account
CHX Series Water-Cooled Capacitors - 1500 VRMS, 300 kVA
$199.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

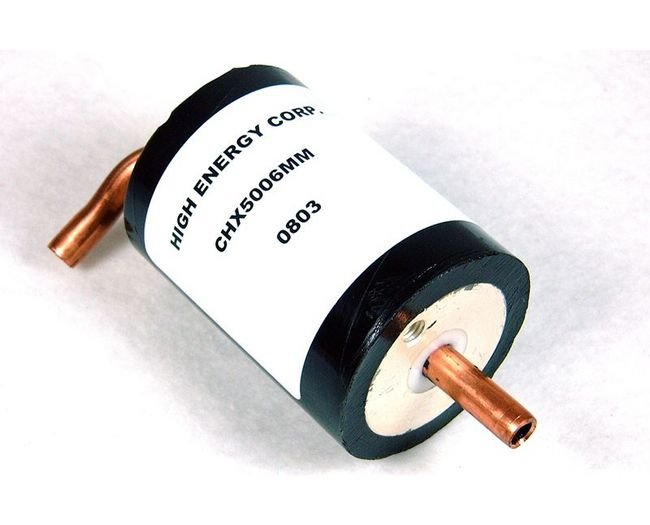

The CHX Series Water-Cooled Capacitors offer exceptional performance with a working voltage of 1500 VRMS and a maximum power capacity of 300 kVA. Designed to handle up to 200 ARMS max current, these capacitors provide reliable and efficient water-cooled operation, ensuring optimal cooling efficiency. With a capacitance of 0.06 µF and adherence to strict technical specifications, these capacitors are ideal for applications requiring high-power performance and precision.
Product Specifications
Cooling Requirements Capacitor Temperature
Not to exceed 90ºC
Cooling Requirements Cooling Water Pressure
Not to exceed 4 Bar (60 PSIG)
Cooling Requirements Flow Rate
1.5 L/min | 0.41 gpm
Cooling Requirements Temperature Rise
The capacitor can exhibit a temperature rise of up to 40ºC at full rated power
Cooling Requirements Water Temperature
Inlet water temperature must be 50ºC or less
Specifications Cap
0.06 µF
Specifications Capacitance Range
0.06 µF Standard
Specifications Capacitance Tolerance
±10% Standard
Specifications Cooling Method
Individually water-cooled

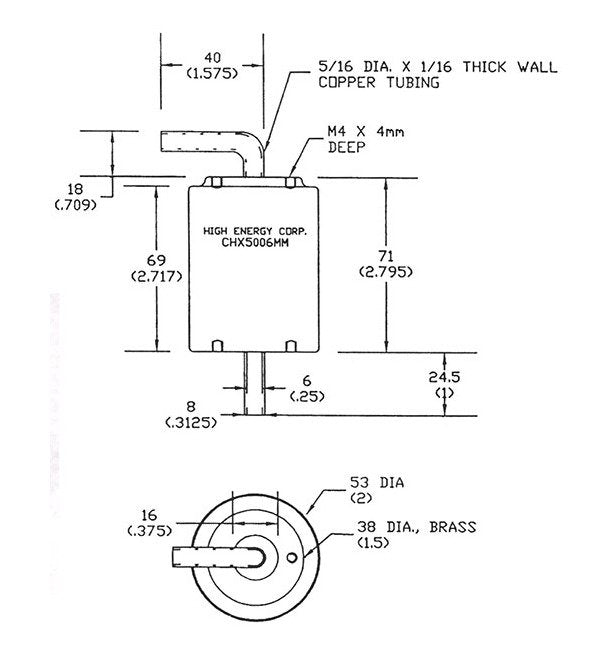

Specifications Diameter
2 1/16 in | 53 mm
Specifications Dissipation Factor
0.1% Maximum

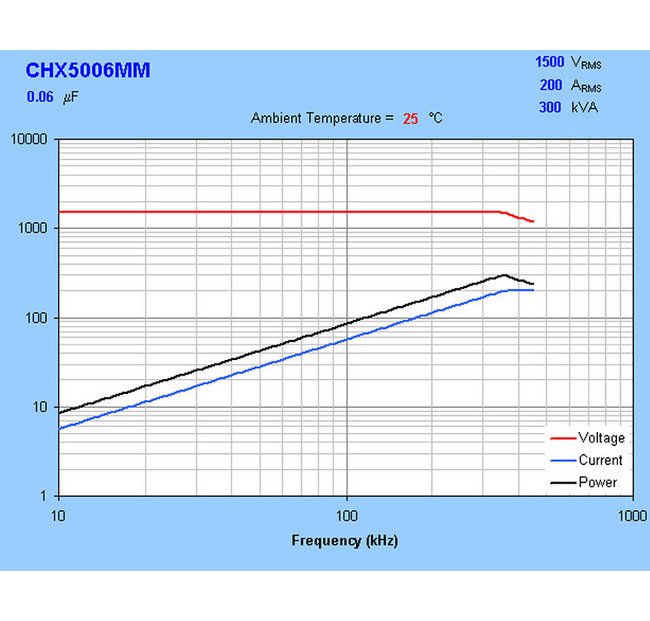

Specifications Fh
353 kHz
Specifications Fl
353 kHz
Specifications Fmax
450 kHz
Specifications Height
2 13/16 in | 71 mm
Specifications Imax Rms
200 A
Specifications Operating Temperature
Up to +90 ºC
Specifications Smax
300 kV·A
Specifications Stray Inductance
Less than 5 nH
Specifications Vmax Rms
1500 V
Specifications Weight
0.36 kg | 0.79 lb
