CHX Series Water-Cooled Capacitors for Industrial Applications
CHX Series Water-Cooled Capacitors for Industrial Applications
SKU:WAT-c9d2f9
Precision-engineered CHX Series Water-Cooled Capacitors for industrial applications. Optimal performance in high-temperature environments with efficient heat dissipation.
Regular price
$99.99
Regular price
Sale price
$99.99
Unit price
per
Initiate Order
CHX Series Water-Cooled Capacitors for Industrial Applications
$99.99
Quantity: 1
Claim Your Seller Account
CHX Series Water-Cooled Capacitors for Industrial Applications
$99.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

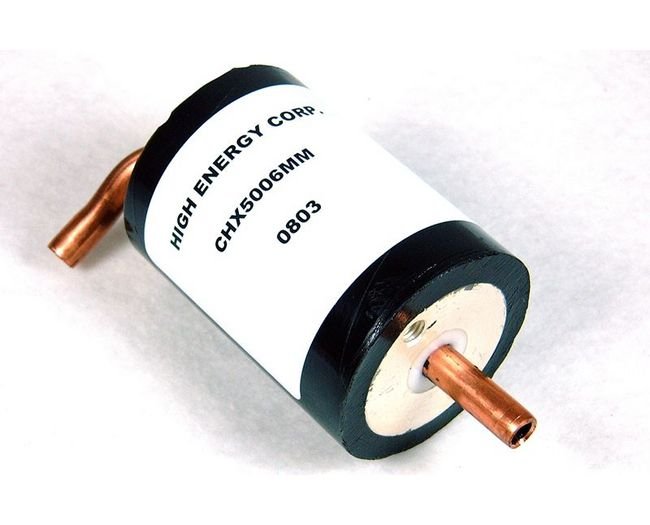

The CHX Series Water-Cooled Capacitors are precision-engineered for demanding industrial applications, offering a capacitance range of >0.06 µF with a ±10% tolerance. These capacitors are designed for optimal performance in high-temperature environments, with individually water-cooled systems to ensure efficient heat dissipation. With a compact design of 2 1/16 inches in diameter and 2 13/16 inches in height, these capacitors have low stray inductance (<5 nH) and a maximum dissipation factor of 0.1%, guaranteeing reliable and stable operation. Compliant with stringent cooling requirements, these capacitors can handle a temperature rise of up to 40ºC at full power, with cooling water pressure not exceeding 4 Bar (60 PSIG).
Product Specifications
Cooling Requirements Capacitor Temperature
Not to exceed 90ºC
Cooling Requirements Cooling Water Pressure
Not to exceed 4 Bar (60 PSIG)
Cooling Requirements Flow Rate
1.5 L/min | 0.41 gpm
Cooling Requirements Temperature Rise
The capacitor can exhibit a temperature rise of up to 40ºC at full rated power
Cooling Requirements Water Temperature
Inlet water temperature must be 50ºC or less
Specifications Cap
>0.06 µF
Specifications Capacitance Range
0.06 µF Standard
Specifications Capacitance Tolerance
±10% Standard
Specifications Cooling Method
Individually water-cooled

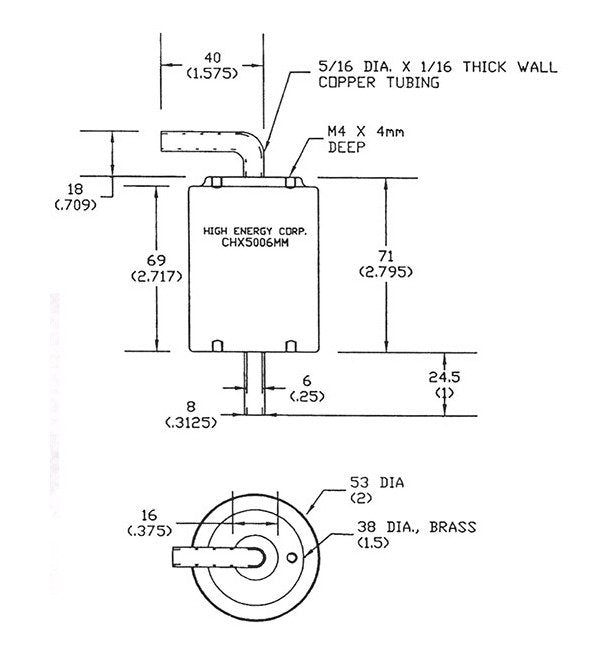

Specifications Diameter
2 1/16 in | 53 mm
Specifications Dissipation Factor
0.1% Maximum
Specifications Height
2 13/16 in | 71 mm
Specifications Operating Temperature
Up to +90 ºC
Specifications Stray Inductance
Less than 5 nH
Specifications Weight
0.36 kg | 0.79 lb
