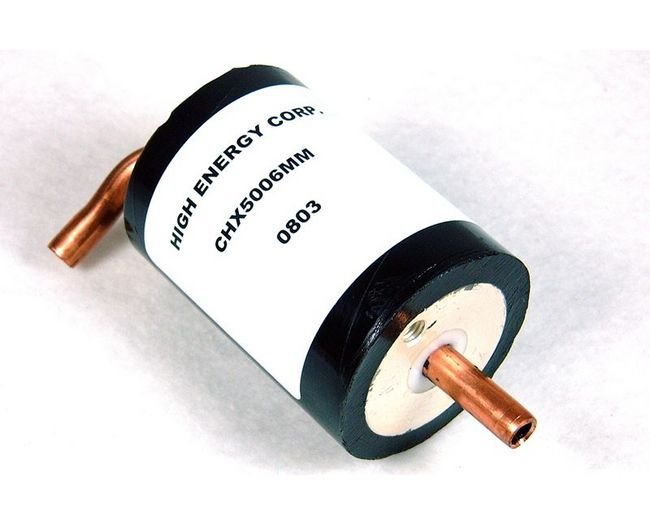

The CHX Series Water-Cooled Capacitors are expertly designed to ensure exceptional performance in precision electrical applications. With a capacitance range of 0.06 µF and a capacitance tolerance of ±10%, these capacitors deliver reliable and stable results. Operating at temperatures up to +90 ºC, these capacitors are individually water-cooled, maintaining a maximum dissipation factor of 0.1%. They feature a compact design with a diameter of 2 1/16 in and a height of 2 13/16 in, suitable for various installations. The cooling system ensures the capacitor temperature does not exceed 90ºC, with a maximum temperature rise of 40ºC at full power, while requiring an inlet water temperature of 50ºC or lower for optimal performance.
Product Specifications
Cooling Requirements Capacitor Temperature
Not to exceed 90ºC
Cooling Requirements Cooling Water Pressure
Not to exceed 4 Bar (60 PSIG)
Cooling Requirements Flow Rate
1.5 L/min | 0.41 gpm
Cooling Requirements Temperature Rise
The capacitor can exhibit a temperature rise of up to 40ºC at full rated power
Cooling Requirements Water Temperature
Inlet water temperature must be 50ºC or less
Specifications Cap
<0.06 µF
Specifications Capacitance Range
0.06 µF Standard
Specifications Capacitance Tolerance
±10% Standard
Specifications Cooling Method
Individually water-cooled

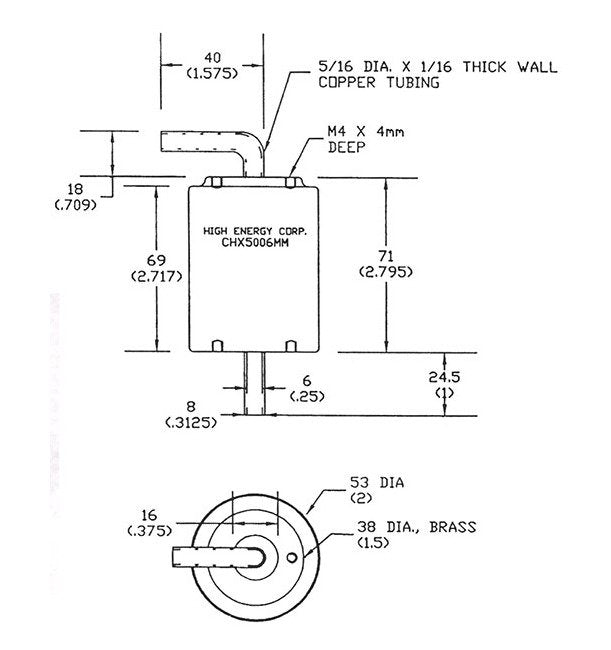

Specifications Diameter
2 1/16 in | 53 mm
Specifications Dissipation Factor
0.1% Maximum
Specifications Height
2 13/16 in | 71 mm
Specifications Operating Temperature
Up to +90 ºC
Specifications Stray Inductance
Less than 5 nH
Specifications Weight
0.36 kg | 0.79 lb
