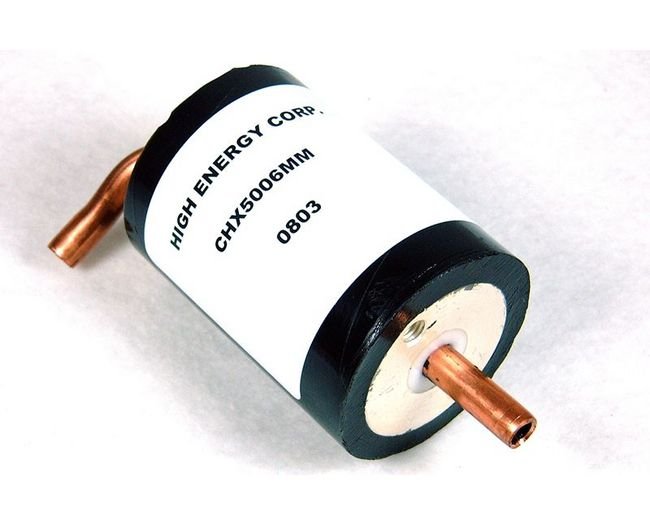

CHX Series Water-Cooled Capacitors - High Power and Efficiency
CHX Series Water-Cooled Capacitors - High Power and Efficiency
SKU:MET-44e49b
High-power water-cooled capacitors with 300 kVA max power & 1500 VRMS voltage for industrial use.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
CHX Series Water-Cooled Capacitors - High Power and Efficiency
$299.99
Quantity: 1
Claim Your Seller Account
CHX Series Water-Cooled Capacitors - High Power and Efficiency
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

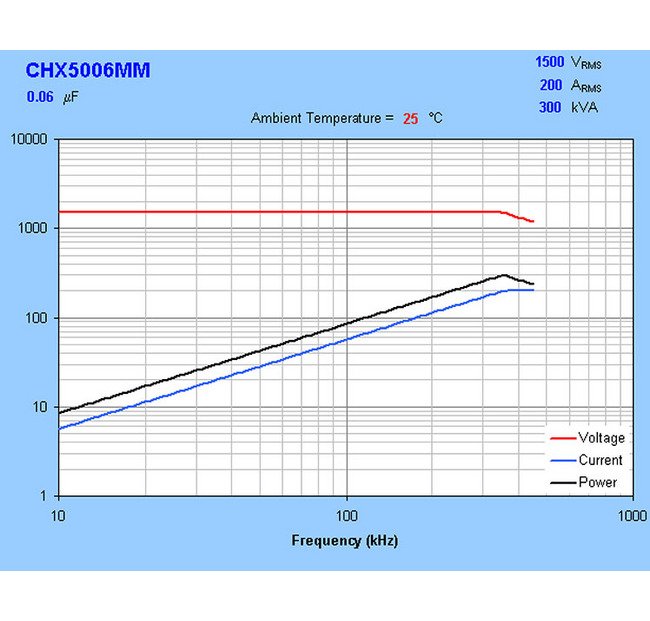

The CHX Series Water-Cooled Capacitors offer exceptional power handling capabilities with a maximum power of 300 kVA and a working voltage of 1500 VRMS. Designed for high-performance applications, these capacitors can sustain up to 200 ARMS max current. They feature a capacitance of 0.06 µF with a capacitance range of ±10% tolerance. Efficiently cooled with individually water-cooled methods, these capacitors maintain stable performance even under demanding conditions. With a compact design and low weight, they are ideal for industrial and institutional applications requiring reliable and durable components.
Product Specifications
Cooling Requirements Capacitor Temperature
Not to exceed 90ºC
Cooling Requirements Cooling Water Pressure
Not to exceed 4 Bar (60 PSIG)
Cooling Requirements Flow Rate
1.5 L/min | 0.41 gpm
Cooling Requirements Temperature Rise
The capacitor can exhibit a temperature rise of up to 40ºC at full rated power
Cooling Requirements Water Temperature
Inlet water temperature must be 50ºC or less
Specifications Cap
0.06 µF
Specifications Capacitance Range
0.06 µF Standard
Specifications Capacitance Tolerance
±10% Standard
Specifications Cooling Method
Individually water-cooled

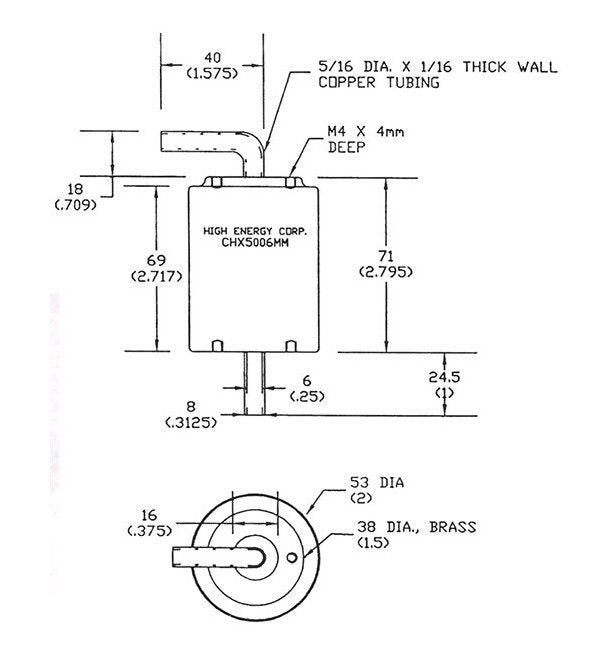

Specifications Diameter
2 1/16 in | 53 mm
Specifications Dissipation Factor
0.1% Maximum
Specifications Fh
353 kHz
Specifications Fl
353 kHz
Specifications Fmax
450 kHz
Specifications Height
2 13/16 in | 71 mm
Specifications Imax Rms
200 A
Specifications Operating Temperature
Up to +90 ºC
Specifications Smax
300 kV·A
Specifications Stray Inductance
Less than 5 nH
Specifications Vmax Rms
1500 V
Specifications Weight
0.36 kg | 0.79 lb
