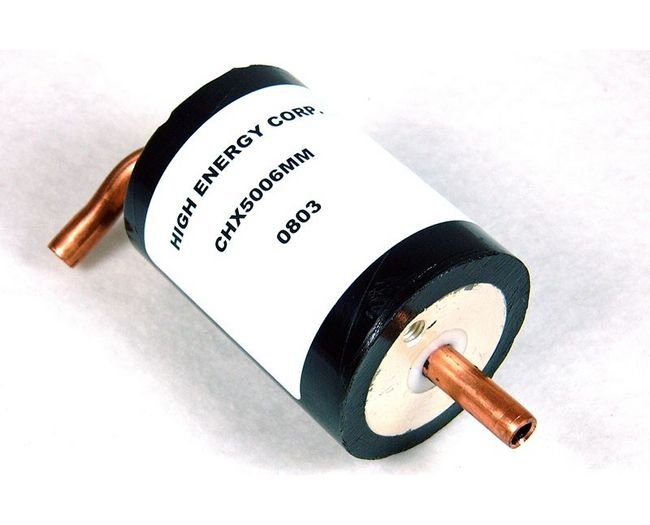

Meet the versatile CHX Series Water-Cooled Capacitors, designed to deliver exceptional performance in a range of applications. With a capacitance range of 0.06 µF and ±10% tolerance, these capacitors ensure precise electrical parameters. Operating at up to +90 ºC with individually water-cooled design, the CHX Series guarantees efficient cooling with a dissipation factor of 0.1% max. Experience reliable performance and durability in a compact form factor.
Product Specifications
Cooling Requirements Capacitor Temperature
Not to exceed 90ºC
Cooling Requirements Cooling Water Pressure
Not to exceed 4 Bar (60 PSIG)
Cooling Requirements Flow Rate
1.5 L/min | 0.41 gpm
Cooling Requirements Temperature Rise
The capacitor can exhibit a temperature rise of up to 40ºC at full rated power
Cooling Requirements Water Temperature
Inlet water temperature must be 50ºC or less
Specifications Cap
<0.06 µF
Specifications Capacitance Range
0.06 µF Standard
Specifications Capacitance Tolerance
±10% Standard
Specifications Cooling Method
Individually water-cooled

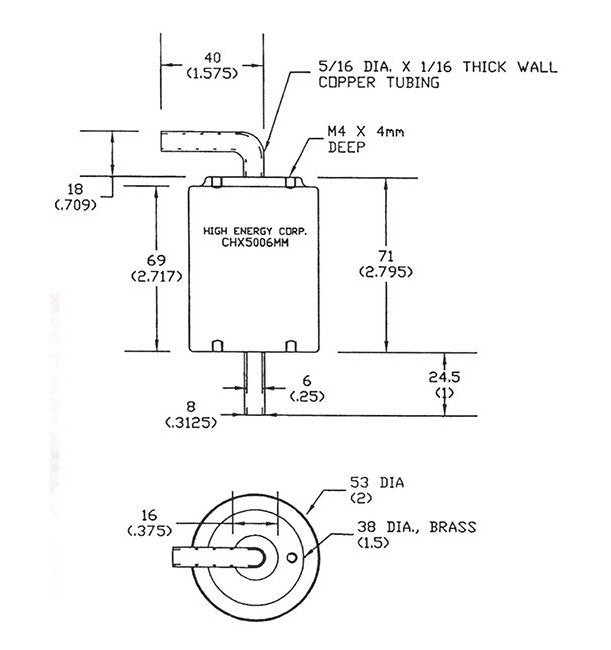

Specifications Diameter
2 1/16 in | 53 mm
Specifications Dissipation Factor
0.1% Maximum
Specifications Height
2 13/16 in | 71 mm
Specifications Operating Temperature
Up to +90 ºC
Specifications Stray Inductance
Less than 5 nH
Specifications Weight
0.36 kg | 0.79 lb
