Cincoze CS-112HC Sunlight Readable Panel PC
Cincoze CS-112HC Sunlight Readable Panel PC
SKU:IND-4c72b2
Powerful, rugged, and sunlight-readable panel PC for outdoor use. Intel Alder Lake-P processor, 1,800 nits brightness, rich I/O, and easy maintenance.
Regular price
$1,899.99
Regular price
Sale price
$1,899.99
Unit price
per
Initiate Order
Cincoze CS-112HC Sunlight Readable Panel PC
$1,899.99
Quantity: 1
Claim Your Seller Account
Cincoze CS-112HC Sunlight Readable Panel PC
$1,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

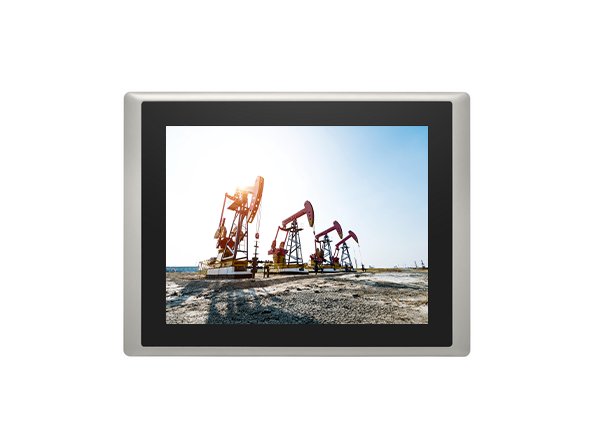

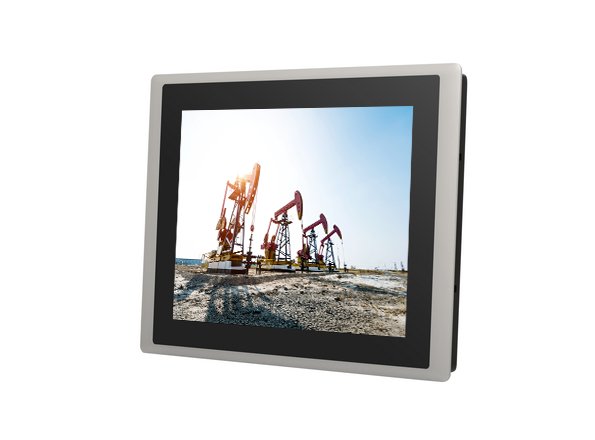

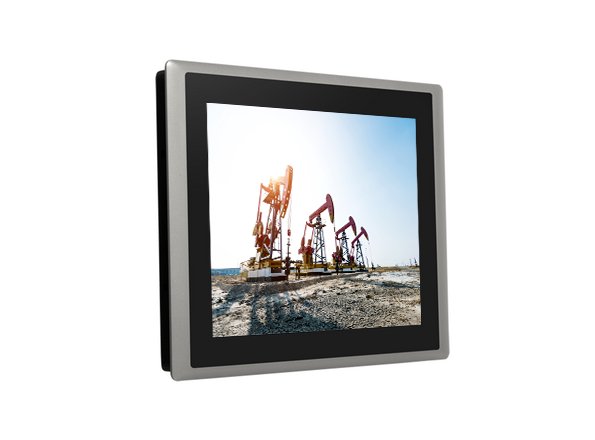

Experience superior outdoor computing with the Cincoze CS-112HC Sunlight Readable Panel PC. Powered by an Intel Alder Lake-P processor, this high-performance panel PC offers ultra-high brightness of 1,800 nits, multiple display options, rich I/O connectivity, and rugged construction for reliable operation in outdoor environments. Ideal for outdoor kiosk and HMI applications, the CS-112HC delivers excellent computing performance and easy on-site maintenance, making it a top choice for demanding industrial settings.
Product Specifications
Additional Information Additional Information
Excellent Computing PerformanceThe CS-100/P2202 series is equipped with the 12th Gen Intel® Core⢠i5/i3 U-series (Alder Lake-P) processor based on the Intel® 7 process. The U-series has a low power consumption of only 15W, boasts excellent performance with up to 10 cores (2P+8E), and includes the built-in Intel® Iris® Xe graphics to easily handle image classification inference performance in AI deep learning.CDS Patented TechnologyCincoze® Convertible Display System (CDS) patented technology makes field-side maintenance and future upgrades easier. Replacing a display or improving system performance only requires replacing a single component, which significantly cuts upgrade costs.Patent No. M482908Complete Range of SizesThe CS-100/P2202 series offers a variety of display options, with screen sizes from 12 to 24 inches, support for up to full HD resolution, high brightness up to 1,800 nits, and multi-point P-Cap touchscreen, which can be selected according to application needs.Wide Temps, Safe, ReliableIn order to overcome the harsh outdoor environment and unpredictable climate, the CS-100/P2202 series has a series of industrial-grade protections, including a wide operating temperature range (-20ºC to 70ºC) that beats the industry standard and an IP65 dustproof/water resistant front panel to ensure a high degree of product safety.
Audio Audio Codec
Realtek® ALC888, High Definition Audio
Audio Line Out
1x Line-Out, Phone Jack 3.5 mm
Audio Mic In
1x Mic-in, Phone Jack 3.5 mm
Cs 112h Ambient Operating Temperature With Air Flow Cs 112h
-20 to 80 ºC
Cs 112h Backlight Mean Time Between Failures Mtbf Cs 112h
50,000 h
Cs 112h Brightness Cs 112h
1500 cd/m²
Cs 112h Contrast Ratio Cs 112h
700:1
Cs 112h Depth Cs 112h
265.3 mm
Cs 112h Electromagnetic Compatibility Emc Cs 112h
European Conformity (CE) | Federal Communications Commission (FCC) | Interference-Causing Equipment Standard 003 (ICES-003 Class A) | United Kingdom Conformity Assessed (UKCA)
Cs 112h Electromagnetic Interference Emi Cs 112h
CISPR 32 Conducted & Radiated: Class AEN/BS EN 55032 Conducted & Radiated: Class AEN/BS EN IEC 61000-3-2 Harmonic current emissions: Class AEN/BS EN61000-3-3 Voltage fluctuations & flickerFCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A
Cs 112h Environmental Management System Ems Cs 112h
EN/IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kVEN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 3 V/mEN/IEC 61000-4-4 EFT: AC Power: 1 kV; DC Power: 0.5 kV; Signal: 0.5 kVEN/IEC 61000-4-5 Surges: AC Power: 2 kV; Signal: 1 kVEN/IEC 61000-4-6 CS: 3VEN/IEC 61000-4-8 PFMF: 50 Hz, 1A/mEN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 0.5 cycles at 50 Hz
Cs 112h Front Panel Protection Cs 112h
IP 65 Compliant
Cs 112h Height Cs 112h
57 mm
Cs 112h Liquid Crystal Display Lcd Color Cs 112h
16.7M
Cs 112h Liquid Crystal Display Lcd Size Cs 112h
12.1 in | 4:3
Cs 112h Maximum Resolution Cs 112h
1024 x 768 (XGA)
Cs 112h Mechanical Construction Cs 112h
Flat Rugged Aluminum Die-Casting Bezel
Cs 112h Non Condensing Relative Humidity Rh At 40 Degree Celsius
90 %
Cs 112h Note For Ambient Operating Temperature With Air Flow Cs
With Industrial Grade Peripherals
Cs 112h Pixel Pitch Horizontal Cs 112h
0.24 mm
Cs 112h Pixel Pitch Vertical Cs 112h
0.24 mm
Cs 112h Safety Cs 112h
Canadian Underwriters Laboratories (cUL) | Certification Body (CB) | European Norm (EN 62368-1) | International Electrotechnical Commission (IEC) | Underwriters Laboratories (UL)
Cs 112h Storage Temperature Cs 112h
-30 to 80 ºC
Cs 112h Touchscreen Type Cs 112h
Projected Capacitive
Cs 112h Power Consumption Cs 112h
16.22 W
Cs 112h Viewing Angle Horizontal Vertical H V Cs 112h
160/140
Cs 112h Weight Cs 112h
3.61 kg
Cs 112h Width Cs 112h
345 mm
Environment Electromagnetic Compatibility Emc
CE, UKCA, FCC, ICES-003 Class AEN IEC 61000-6-4, EN IEC 61000-6-2 (24VDC Input Only)
Environment Electromagnetic Interference Emi
CISPR 32 Conducted & Radiated: Class AEN/BS EN 55032 Conducted & Radiated: Class AEN/BS EN IEC 61000-3-2 Harmonic current emissions: Class AEN/BS EN61000-3-3 Voltage fluctuations & flickerFCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A
Physical Depth
190 mm
Physical Height
41.5 mm
Physical Width
254.5 mm
Power Power Button
1x ATX Power On/Off Button
Power Power Input
9 to 48 VDC, 3-Pin Terminal Block
Power Power Mode Switch
1x AT/ATX Mode Switch
Power Remote Power Onoff
1x Remote Power On/Off, 2-pin Terminal Block
Reliability And Protection Over Voltage Protection
Protection Range: 51~58VProtection Type: shut down operating voltage, re-power on at the present level to recover
Reliability And Protection Reverse Power Input Protection
Yes
