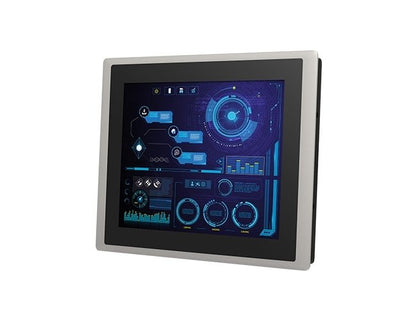

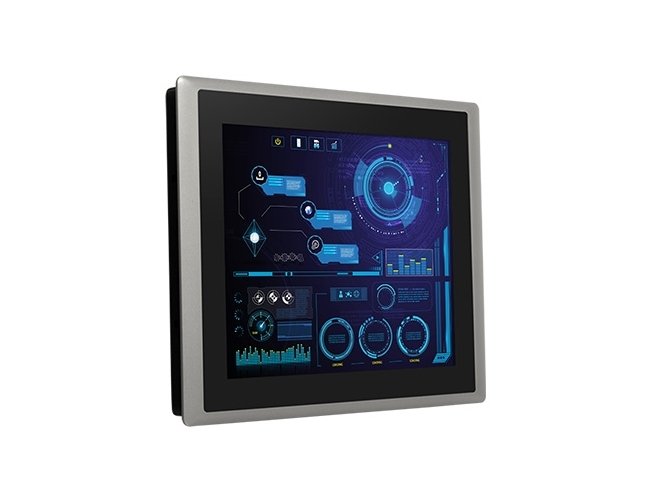

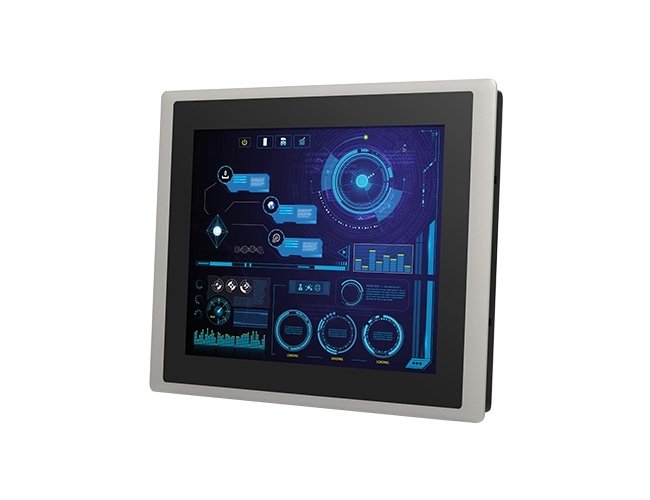

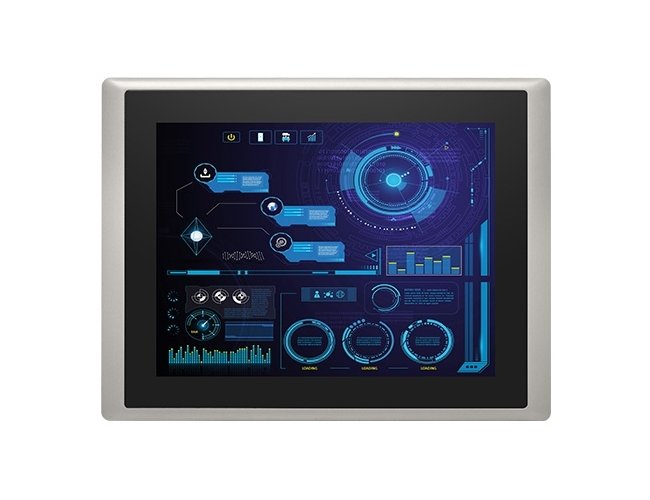

Cincoze CV-112HC-R11 Industrial Panel PC
Cincoze CV-112HC-R11 Industrial Panel PC
SKU:IND-c03662
Cutting-edge Industrial Panel PC with Intel Core i5 processor, 12.1" XGA display, and rugged design for demanding industrial applications.
Regular price
$1,899.99
Regular price
Sale price
$1,899.99
Unit price
per
Initiate Order
Cincoze CV-112HC-R11 Industrial Panel PC
$1,899.99
Quantity: 1
Claim Your Seller Account
Cincoze CV-112HC-R11 Industrial Panel PC
$1,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Cincoze CV-112HC-R11 Industrial Panel PC offers exceptional computing performance with a 12th Gen Intel Core i5 processor, combined with a 12.1" XGA TFT display with Projected Capacitive Touch technology. With a rugged design, wide temperature range, wide voltage input, and IP65 front panel protection, this Industrial Panel PC is ideal for demanding industrial environments. Its CDS Patented Technology allows for easy field-side maintenance and upgrades, providing reliability and performance for various applications.
Product Specifications
Additional Information Additional Information
Excellent Computing PerformanceThe CV-100/P2202 series is equipped with the 12th Gen Intel® Core⢠i5/i3 U-series (Alder Lake-P) processor based on the Intel® 7 process. The U-series has a low power consumption of only 15W, boasts excellent performance with up to 10 cores (2P+8E), and includes the built-in Intel® Iris® Xe graphics to easily handle image classification inference performance in AI deep learning.CDS Patented TechnologyCincoze® Convertible Display System (CDS) patented technology makes field-side maintenance and future upgrades easier. Replacing a display or improving system performance only requires replacing a single component, which significantly cuts upgrade costs.Patent No. M482908Complete Range of SizesThe CV-100/P2202 series has a diverse product portfolio, ranging from screen size (12 to 24 inches), display ratio (4:3, 5:4, and 16:9) to touch methods (multi-point P-Cap and single-point resistive), which can be selected based on application requirements.Rugged, Safe, and more ReliableTo face harsh and rugged usage environments, the CV-100/P2202 series has a series of industrial-grade protections, including a wide operating temperature range (-20ºC to 70ºC), a wide range DC power input (9 to 48VDC), and a dustproof/water resistant IP65 front panel, which is beneficial for applications such as field-side HMI or production process visualization.
Audio Audio Codec
Realtek® ALC888, High Definition Audio
Audio Line Out
1x Line-Out, Phone Jack 3.5 mm
Audio Mic In
1x Mic-in, Phone Jack 3.5 mm
Cv 112h Backlight Mean Time Between Failures Mtbf Cv 112h
50,000 h
Cv 112h Brightness Cv 112h
500 cd/m²
Cv 112h Contrast Ratio Cv 112h
700:1
Cv 112h Depth Cv 112h
265.3 mm
Cv 112h Electromagnetic Compatibility Emc Cv 112h
European Conformity (CE) | Federal Communications Commission (FCC) | Interference-Causing Equipment Standard 003 (ICES-003 Class A) | United Kingdom Conformity Assessed (UKCA)
Cv 112h Environmental Management System Ems Cv 112h
EN/IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kVEN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 3 V/mEN/IEC 61000-4-4 EFT: AC Power: 1 kV; DC Power: 0.5 kV; Signal: 0.5 kVEN/IEC 61000-4-5 Surges: AC Power: 2 kV; Signal: 1 kVEN/IEC 61000-4-6 CS: 3VEN/IEC 61000-4-8 PFMF: 50 Hz, 1A/mEN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 0.5 cycles at 50 Hz
Cv 112h Front Panel Protection Cv 112h
IP 65 Compliant
Cv 112h Height Cv 112h
57 mm
Cv 112h Liquid Crystal Display Lcd Color Cv 112h
16.7M
Cv 112h Liquid Crystal Display Lcd Size Cv 112h
12.1 in | 4:3
Cv 112h Maximum Resolution Cv 112h
1024 x 768
Cv 112h Mechanical Construction Cv 112h
Die-Casting Flat Surface
Cv 112h Non Condensing Relative Humidity Rh At 40 Degree Celsius
90 %
Cv 112h Note For Operating Temperature Cv 112h
with Industrial Grade peripherals; Ambient with air flow
Cv 112h Operating Temperature Cv 112h
-20 to 80 ºC
Cv 112h Pixel Pitch Horizontal
0.24 mm
Cv 112h Pixel Pitch Vertical
0.24 mm
Cv 112h Storage Temperature Cv 112h
-30 to 80 ºC
Cv 112h Touch Screen Cv 112h
Projected Capacitive
Cv 112h Viewing Angle Horizontal Vertical H V Cv 112h
160/140
Cv 112h Weight Cv 112h
3.16 kg
Cv 112h Width Cv 112h
345 mm
Environment Electromagnetic Compatibility Emc
CE, UKCA, FCC, ICES-003 Class AEN IEC 61000-6-4, EN IEC 61000-6-2 (24VDC Input Only)
Environment Electromagnetic Interference Emi
CISPR 32 Conducted & Radiated: Class AEN/BS EN 55032 Conducted & Radiated: Class AEN/BS EN IEC 61000-3-2 Harmonic current emissions: Class AEN/BS EN61000-3-3 Voltage fluctuations & flickerFCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A
Environment Environmental Management System Ems
EN/IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kVEN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 10 V/mEN/IEC 61000-4-4 EFT: AC Power: 2 kV; DC Power: 1 kV; Signal: 1 kVEN/IEC 61000-4-5 Surges: AC Power: 2 kV; Signal: 1 kVEN/IEC 61000-4-6 CS: 10VEN/IEC 61000-4-8 PFMF: 50 Hz, 30A/mEN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 1 cycles at 60 Hz
Environment Non Condensing Relative Humidity Rh At 70 Degree Cel
95 %
Environment Note For Operating Temperature
With extended temperature peripherals; Ambient with air flowAccording to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14
Physical Depth
190 mm
Physical Height
41.5 mm
Physical Width
254.5 mm
Power Power Button
1x ATX Power On/Off Button
Power Power Input Direct Current Dc Voltage
9 to 48 VDC, 3-pin Terminal Block
Power Power Mode Switch
1x AT/ATX Mode Switch
Power Remote Power Onoff
1x Remote Power On/Off, 2-pin Terminal Block
Reliability And Protection Over Voltage Protection
Protection Range: 51~58VProtection Type: shut down operating voltage, re-power on at the present level to recover
Reliability And Protection Reverse Power Input Protection
Yes
