Cincoze CV-119C 19" Panel PC with Intel Core i5-1245UE
Cincoze CV-119C 19" Panel PC with Intel Core i5-1245UE
SKU:IND-c3ad8e
Experience high-performance computing with the Cincoze CV-119C 19" Panel PC for industrial settings, featuring an Intel Core i5 processor and advanced graphics capabilities.
Regular price
$1,899.99
Regular price
Sale price
$1,899.99
Unit price
per
Initiate Order
Cincoze CV-119C 19" Panel PC with Intel Core i5-1245UE
$1,899.99
Quantity: 1
Claim Your Seller Account
Cincoze CV-119C 19" Panel PC with Intel Core i5-1245UE
$1,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

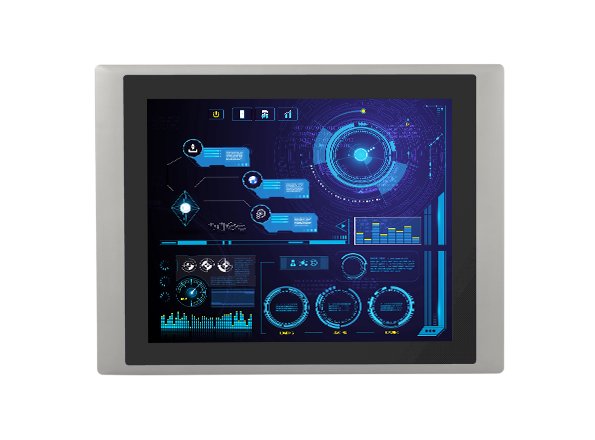

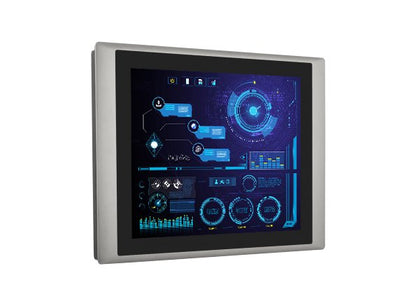

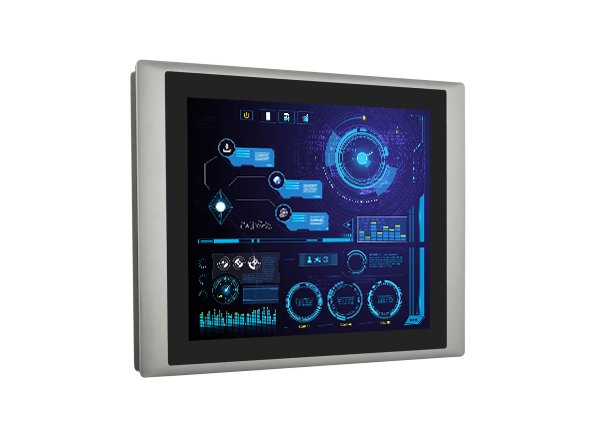

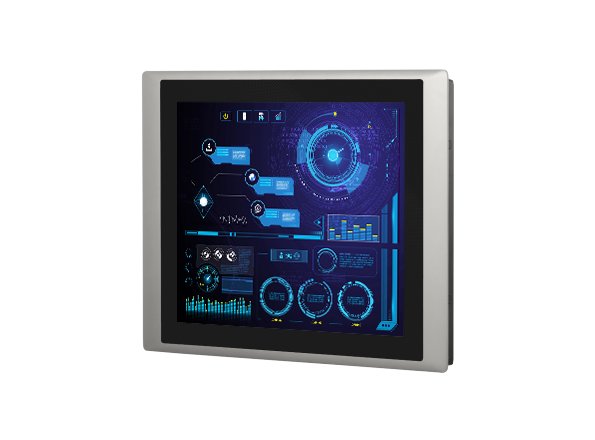

The Cincoze CV-119C-R11/P2202-i5-R10 Industrial Panel PC offers cutting-edge technology featuring a 19" TFT SXGA display, an onboard 12th Gen. Intel Core i5-1245UE processor, and Projected Capacitive Touch for seamless interaction. With integrated Intel Iris Xe Graphics, up to 64GB DDR5 memory support, and a rugged design with IP65 front panel protection, this PC ensures reliable performance in harsh environments. Its advanced features like Quad Independent Display support, RAID storage, and a wide operating temperature range make it ideal for industrial applications requiring robust computing power and durability.
Product Specifications
Additional Information Additional Information
Excellent Computing PerformanceThe CV-100/P2202 series is equipped with the 12th Gen Intel® Core⢠i5/i3 U-series (Alder Lake-P) processor based on the Intel® 7 process. The U-series has a low power consumption of only 15W, boasts excellent performance with up to 10 Coreâ¢s (2P+8E), and includes the built-in Intel® Iris® Xe graphics to easily handle image classification inference performance in AI deep learning.CDS Patented TechnologyCincoze® Convertible Display System (CDS) patented technology makes field-side maintenance and future upgrades easier. Replacing a display or improving system performance only requires replacing a single component, which significantly cuts upgrade costs.Patent No. M482908Complete Range of SizesThe CV-100/P2202 series has a diverse product portfolio, ranging from screen size (12 to 24 inches), display ratio (4:3, 5:4, and 16:9) to touch methods (multi-point P-Cap and single-point resistive), which can be selected based on application requirements.Rugged, Safe, and more ReliableTo face harsh and rugged usage environments, the CV-100/P2202 series has a series of industrial-grade protections, including a wide operating temperature range (-20°C to 70°C), a wide range DC power input (9 to 48VDC), and a dustproof/water resistant IP65 front panel, which is beneficial for applications such as field-side HMI or production process visualization.
Audio Audio Codec
Realtek® ALC888, High Definition Audio
Audio Line Out
1x Line-Out, Phone Jack 3.5 mm
Audio Mic In
1x Mic-in, Phone Jack 3.5 mm
Cv 119 Ambient Operating Temperature With Air Flow Cv 119
0 to 50 ºC
Cv 119 Backlight Mean Time Between Failures Mtbf Cv 119
50,000 h
Cv 119 Brightness Cv 119
350 cd/m²
Cv 119 Contrast Ratio Cv 119
1000:1
Cv 119 Depth Cv 119
389.3 mm
Cv 119 Electromagnetic Compatibility Emc Cv 119
European Conformity (CE) | Federal Communications Commission (FCC) | Interference-Causing Equipment Standard 003 (ICES-003 Class A) | United Kingdom Conformity Assessed (UKCA)
Cv 119 Electromagnetic Interference Emi Cv 119
CISPR 32 Conducted & Radiated: Class AEN/BS EN 55032 Conducted & Radiated: Class AEN/BS EN IEC 61000-3-2 Harmonic current emissions: Class AEN/BS EN61000-3-3 Voltage fluctuations & flickerFCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A
Cv 119 Environmental Management System Ems Cv 119
EN/IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kVEN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 3 V/mEN/IEC 61000-4-4 EFT: AC Power: 1 kV; DC Power: 0.5 kV; Signal: 0.5 kVEN/IEC 61000-4-5 Surges: AC Power: 2 kV; Signal: 1 kVEN/IEC 61000-4-6 CS: 3VEN/IEC 61000-4-8 PFMF: 50 Hz, 1A/mEN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 0.5 cycles at 50 Hz
Cv 119 Front Panel Protection Cv 119
IP 65 Compliant
Cv 119 Height Cv 119
63.2 mm
Cv 119 Liquid Crystal Display Lcd Color Cv 119
16.7M
Cv 119 Liquid Crystal Display Lcd Size Cv 119
19 in | 5:4
Cv 119 Maximum Power Consumption Cv 119
21 W
Cv 119 Maximum Resolution Cv 119
1280 x 1024
Cv 119 Mechanical Construction Cv 119
Die-Casting Flat Surface
Cv 119 Non Condensing Relative Humidity Rh At 50 Degree Celsius
80 %
Cv 119 Note For Ambient Operating Temperature With Air Flow Cv 1
With Industrial Grade Peripherals
Cv 119 Pixel Pitch Horizontal Cv 119
0.294 mm
Cv 119 Pixel Pitch Vertical Cv 119
0.294 mm
Cv 119 Safety Cv 119
Canadian Underwriters Laboratories (cUL) | Certification Body (CB) | European Norm (EN 62368-1) | International Electrotechnical Commission (IEC) | Underwriters Laboratories (UL)
Cv 119 Storage Temperature Cv 119
-20 to 60 ºC
Cv 119 Touchscreen Type Cv 119
Projected Capacitive
Cv 119 Viewing Angle Horizontal Vertical H V Cv 119
170/160
Cv 119 Weight Cv 119
6.96 kg
Cv 119 Width Cv 119
510 mm
Environment Electromagnetic Compatibility Emc
CE, UKCA, FCC, ICES-003 Class AEN IEC 61000-6-4, EN IEC 61000-6-2 (24VDC Input Only)
Environment Electromagnetic Interference Emi
CISPR 32 Conducted & Radiated: Class AEN/BS EN 55032 Conducted & Radiated: Class AEN/BS EN IEC 61000-3-2 Harmonic current emissions: Class AEN/BS EN61000-3-3 Voltage fluctuations & flickerFCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A
Physical Depth
190 mm
Physical Height
41.5 mm
Physical Width
254.5 mm
Power Power Button
1x ATX Power On/Off Button
Power Power Input
9 to 48 VDC, 3-Pin Terminal Block
Power Power Mode Switch
1x AT/ATX Mode Switch
Power Remote Power Onoff
1x Remote Power On/Off, 2-pin Terminal Block
Reliability And Protection Over Voltage Protection
Protection Range: 51~58VProtection Type: shut down operating voltage, re-power on at the present level to recover
Reliability And Protection Reverse Power Input Protection
Yes
