Cincoze CV-W115C Industrial Panel PC
Cincoze CV-W115C Industrial Panel PC
SKU:IND-14b58a
Enhance operations with the rugged and efficient Cincoze CV-W115C Industrial Panel PC, featuring Intel® Core™ i5 processor, wide temperature range, and reliable performance.
Regular price
$1,899.99
Regular price
Sale price
$1,899.99
Unit price
per
Initiate Order
Cincoze CV-W115C Industrial Panel PC
$1,899.99
Quantity: 1
Claim Your Seller Account
Cincoze CV-W115C Industrial Panel PC
$1,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

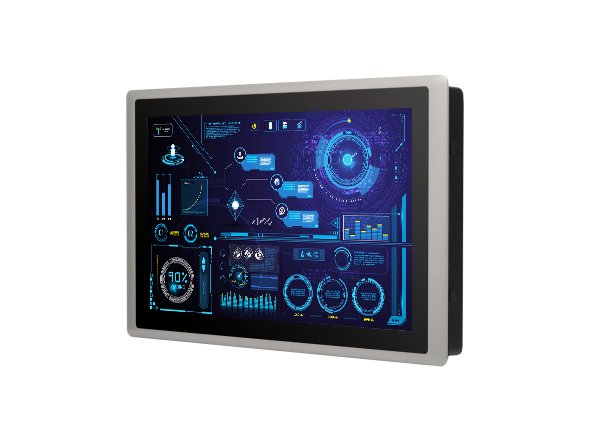

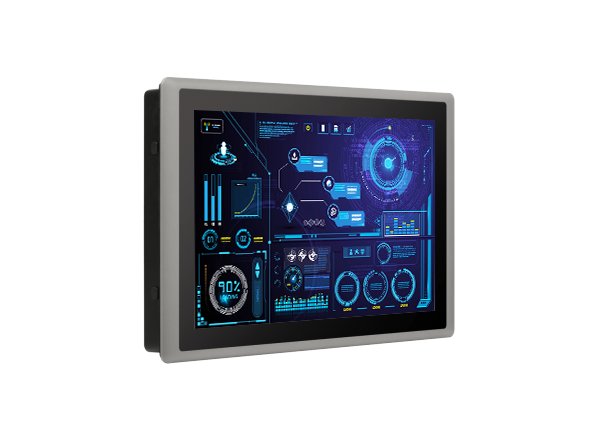

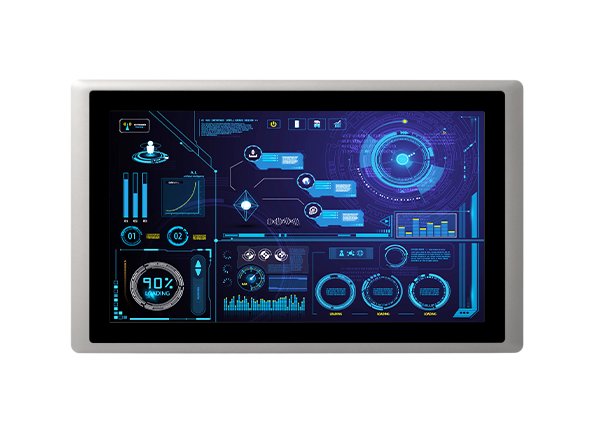

The Cincoze CV-W115C-R11/P2202-i5-R10 Industrial Panel PC boasts a 15.6" TFT WXGA 16:9 display with a 12th Gen. Intel® Core™ i5-1245UE Processor. Designed with a projected capacitive touch screen, this PC offers excellent computing performance, a wide operational temperature range, and a rugged construction. With integrated Intel® Iris® Xe Graphics and Quad Independent Display support, it meets the demands of industrial environments while providing easy maintenance and future upgrade capabilities through the Cincoze® Convertible Display System (CDS) patented technology.
Product Specifications
Additional Information Additional Information
Excellent Computing PerformanceThe CV-100/P2202 series is equipped with the 12th Gen Intel® Core⢠i5/i3 U-series (Alder Lake-P) processor based on the Intel® 7 process. The U-series has a low power consumption of only 15W, boasts excellent performance with up to 10 Coreâ¢s (2P+8E), and includes the built-in Intel® Iris® Xe graphics to easily handle image classification inference performance in AI deep learning.CDS Patented TechnologyCincoze® Convertible Display System (CDS) patented technology makes field-side maintenance and future upgrades easier. Replacing a display or improving system performance only requires replacing a single component, which significantly cuts upgrade costs.Complete Range of SizesThe CV-100/P2202 series has a diverse product portfolio, ranging from screen size (12 to 24 inches), display ratio (4:3, 5:4, and 16:9) to touch methods (multi-point P-Cap and single-point resistive), which can be selected based on application requirements.Rugged, Safe, and more ReliableTo face harsh and rugged usage environments, the CV-100/P2202 series has a series of industrial-grade protections, including a wide operating temperature range (-20ºC to 70ºC), a wide range DC power input (9 to 48VDC), and a dustproof/water resistant IP65 front panel, which is beneficial for applications such as field-side HMI or production process visualization.
Audio Audio Codec
Realtek® ALC888, High Definition Audio
Audio Line Out
1x Line-Out, Phone Jack 3.5 mm
Audio Mic In
1x Mic-in, Phone Jack 3.5 mm
Cv W115 Backlight Mean Time Between Failures Mtbf Cv W115
50,000 h
Cv W115 Brightness Cv W115
400 cd/m²
Cv W115 Contrast Ratio Cv W115
500:1
Cv W115 Depth Cv W115
254 mm
Cv W115 Electromagnetic Compatibility Emccv W115
European Conformity (CE) | Federal Communications Commission (FCC) | Interference-Causing Equipment Standard 003 (ICES-003 Class A) | United Kingdom Conformity Assessed (UKCA)
Cv W115 Electromagnetic Interference Emicv W115
CISPR 32 Conducted & Radiated: Class AEN/BS EN 55032 Conducted & Radiated: Class AEN/BS EN IEC 61000-3-2 Harmonic current emissions: Class AEN/BS EN61000-3-3 Voltage fluctuations & flickerFCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A
Cv W115 Environmental Management System Ems Cv W115
EN/IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kVEN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 3 V/mEN/IEC 61000-4-4 EFT: AC Power: 1 kV; DC Power: 0.5 kV; Signal: 0.5 kVEN/IEC 61000-4-5 Surges: AC Power: 2 kV; Signal: 1 kVEN/IEC 61000-4-6 CS: 3VEN/IEC 61000-4-8 PFMF: 50 Hz, 1A/mEN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 0.5 cycles at 50 Hz
Cv W115 Front Panel Protection Cv W115
IP 65 Compliant
Cv W115 Height Cv W115
66.2 mm
Cv W115 Liquid Crystal Display Lcd Color Cv W115
16.2M
Cv W115 Liquid Crystal Display Lcd Size Cv W115
15.6 in | 16:9
Cv W115 Maximum Resolution Cv W115
1366 x 768 (WXGA)
Cv W115 Mechanical Construction Cv W115
Die-Casting Flat Surface
Cv W115 Non Condensing Relative Humidity Rh At 50 Degree Celsius
80 %
Cv W115 Operating Temperature Cv W115
0 to 60 ºC
Cv W115 Pixel Pitch Horizontal Cv W115
0.252 mm
Cv W115 Pixel Pitch Vertical Cv W115
0.252 mm
Cv W115 Safety Cv W115
Canadian Underwriters Laboratories (cUL) | Certification Body (CB) | European Norm (EN 62368-1) | International Electrotechnical Commission (IEC) | Underwriters Laboratories (UL)
Cv W115 Storage Temperature Cv W115
-20 to 60 ºC
Cv W115 Surge Protection Cv W115
2 kV
Cv W115 Touchscreen Type Cv W115
Projected Capacitive
Cv W115 Viewing Angle Horizontal Vertical H V Cv W115
170/160
Cv W115 Weight Cv W115
4.25 kg
Cv W115 Width Cv W115
420 mm
Environment Electromagnetic Compatibility Emc
CE, UKCA, FCC, ICES-003 Class AEN IEC 61000-6-4, EN IEC 61000-6-2 (24VDC Input Only)
Environment Electromagnetic Interference Emi
CISPR 32 Conducted & Radiated: Class AEN/BS EN 55032 Conducted & Radiated: Class AEN/BS EN IEC 61000-3-2 Harmonic current emissions: Class AEN/BS EN61000-3-3 Voltage fluctuations & flickerFCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A
Environment Environmental Management System Ems
EN/IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kVEN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 10 V/mEN/IEC 61000-4-4 EFT: AC Power: 2 kV; DC Power: 1 kV; Signal: 1 kVEN/IEC 61000-4-5 Surges: AC Power: 2 kV; Signal: 1 kVEN/IEC 61000-4-6 CS: 10VEN/IEC 61000-4-8 PFMF: 50 Hz, 30A/mEN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 1 cycles at 60 Hz
Physical Depth
190 mm
Physical Height
41.5 mm
Physical Width
254.5 mm
Power Power Button
1x ATX Power On/Off Button
Power Power Input
9 to 48 VDC, 3-Pin Terminal Block
Power Power Mode Switch
1x AT/ATX Mode Switch
Power Remote Power Onoff
1x Remote Power On/Off, 2-pin Terminal Block
Reliability And Protection Over Voltage Protection
Protection Range: 51~58VProtection Type: shut down operating voltage, re-power on at the present level to recover
Reliability And Protection Reverse Power Input Protection
Yes
