Cincoze CV-W124C Industrial Panel PC
Cincoze CV-W124C Industrial Panel PC
SKU:IND-9d3538
Enhance operational efficiency with Cincoze's CV-W124C Industrial Panel PC - optimal for rugged applications requiring advanced performance and seamless maintenance.
Regular price
$1,999.99
Regular price
Sale price
$1,999.99
Unit price
per
Initiate Order
Cincoze CV-W124C Industrial Panel PC
$1,999.99
Quantity: 1
Claim Your Seller Account
Cincoze CV-W124C Industrial Panel PC
$1,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

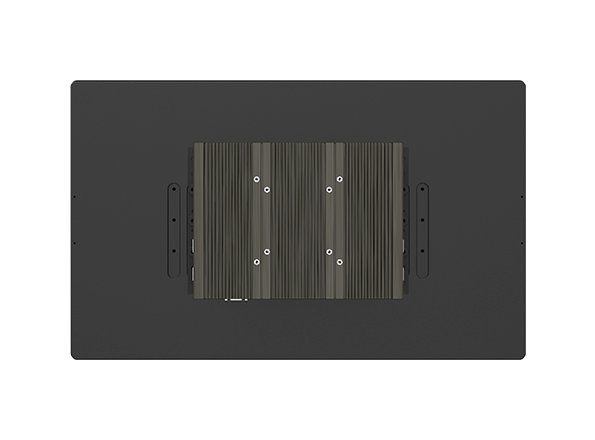

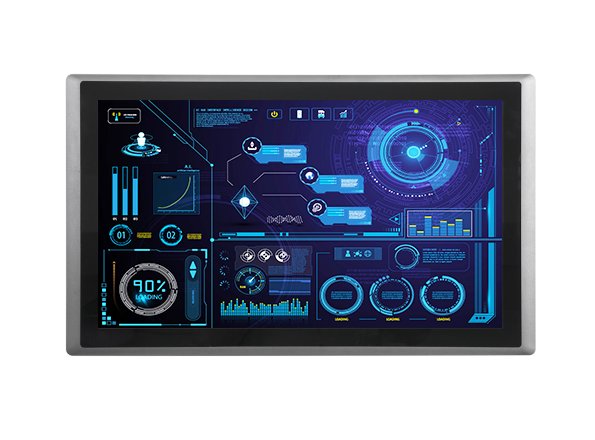

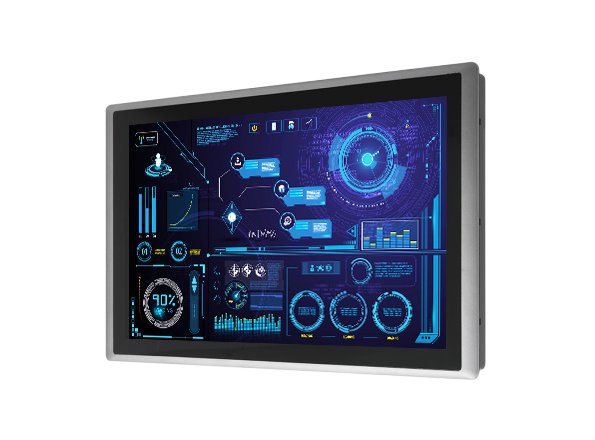

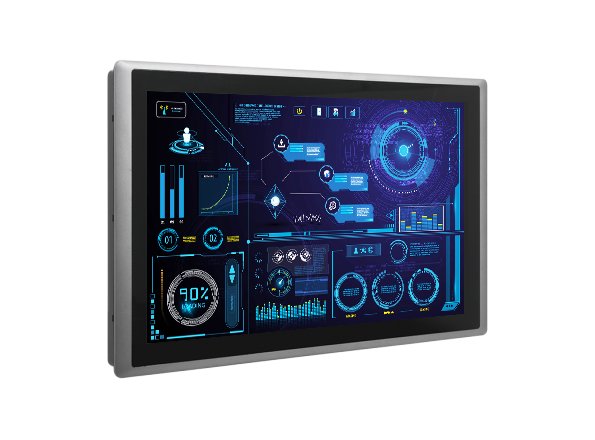

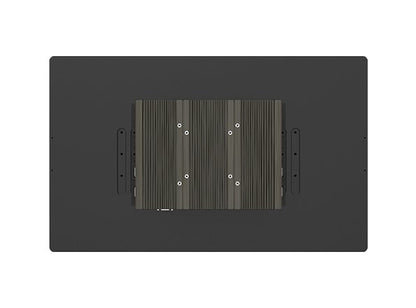

The Cincoze CV-W124C Industrial Panel PC is a powerful 24" TFT Full HD modular system designed for equipment machine HMI and production process visualization. Powered by a 12th Gen Intel Core i5 processor, it offers a wide range of I/O interfaces, rugged construction, and Cincoze's patented CDS technology for effortless upgrades and maintenance. With extensive compliance to industry standards like IP65 protection, CE, FCC, and more, this panel PC excels in reliability, performance, and adaptability.
Product Specifications
Additional Information Additional Information
Excellent Computing PerformanceThe CV-100/P2202 series is equipped with the 12th Gen Intel® Core⢠i5/i3 U-series (Alder Lake-P) processor based on the Intel® 7 process. The U-series has a low power consumption of only 15W, boasts excellent performance with up to 10 cores (2P+8E), and includes the built-in Intel® Iris® Xe graphics to easily handle image classification inference performance in AI deep learning.CDS Patented TechnologyCincoze® Convertible Display System (CDS) patented technology makes field-side maintenance and future upgrades easier. Replacing a display or improving system performance only requires replacing a single component, which significantly cuts upgrade costs.Complete Range of SizesThe CV-100/P2202 series has a diverse product portfolio, ranging from screen size (12 to 24 inches), display ratio (4:3, 5:4, and 16:9) to touch methods (multi-point P-Cap and single-point resistive), which can be selected based on application requirements.Rugged, Safe, and more ReliableTo face harsh and rugged usage environments, the CV-100/P2202 series has a series of industrial-grade protections, including a wide operating temperature range (-20ºC to 70ºC), a wide range DC power input (9 to 48VDC), and a dustproof/water resistant IP65 front panel, which is beneficial for applications such as field-side HMI or production process visualization.
Audio Audio Codec
Realtek® ALC888, High Definition Audio
Audio Line Out
1x Line-Out, Phone Jack 3.5 mm
Audio Mic In
1x Mic-in, Phone Jack 3.5 mm
Cv W124 Ambient Operating Temperature With Air Flow Cv W124
-20 to 70 ºC
Cv W124 Backlight Mean Time Between Failures Mtbf Cv W124
50,000 h
Cv W124 Brightness Cv W124
300 cd/m²
Cv W124 Contrast Ratio Cv W124
5000:1
Cv W124 Depth Cv W124
373 mm
Cv W124 Electromagnetic Compatibility Emc Cv W124
European Conformity (CE) | Federal Communications Commission (FCC) | Interference-Causing Equipment Standard 003 (ICES-003 Class A) | United Kingdom Conformity Assessed (UKCA)
Cv W124 Electromagnetic Interference Emi Cv W124
CISPR 32 Conducted & Radiated: Class AEN/BS EN 55032 Conducted & Radiated: Class AEN/BS EN IEC 61000-3-2 Harmonic current emissions: Class AEN/BS EN61000-3-3 Voltage fluctuations & flickerFCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A
Cv W124 Environmental Management System Ems Cv W124
EN/IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kVEN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 3 V/mEN/IEC 61000-4-4 EFT: AC Power: 1 kV; DC Power: 0.5 kV; Signal: 0.5 kVEN/IEC 61000-4-5 Surges: AC Power: 2 kV; Signal: 1 kVEN/IEC 61000-4-6 CS: 3VEN/IEC 61000-4-8 PFMF: 50 Hz, 1A/mEN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 0.5 cycles at 50 Hz
Cv W124 Front Panel Protection Cv W124
IP 65 Compliant
Cv W124 Height Cv W124
63.2 mm
Cv W124 Liquid Crystal Display Lcd Color Cv W124
16.7M
Cv W124 Liquid Crystal Display Lcd Size Cv W124
24 in | 16:9
Cv W124 Maximum Resolution Cv W124
1920 x 1080
Cv W124 Mechanical Construction Cv W124
Die-Casting Flat Surface
Cv W124 Non Condensing Relative Humidity Rh At 50 Degree Celsius
80 %
Cv W124 Pixel Pitch Horizontal Cv W124
0.27675 mm
Cv W124 Pixel Pitch Vertical Cv W124
0.27675 mm
Cv W124 Safety Cv W124
Canadian Underwriters Laboratories (cUL) | Certification Body (CB) | European Norm (EN 62368-1) | International Electrotechnical Commission (IEC) | Underwriters Laboratories (UL)
Cv W124 Storage Temperature Cv W124
-30 to 80 ºC
Cv W124 Touchscreen Type Cv W124
Projected Capacitive
Cv W124 Vibration Cv W124
Operating, 1 Grms,10-500 Hz, 3 Axes(w/ P2102E only,according to IEC60068-2-6)
Cv W124 Viewing Angle Horizontal Vertical H V Cv W124
178/178
Cv W124 Weight Cv W124
6.64 kg
Cv W124 Width Cv W124
605 mm
Environment Electromagnetic Compatibility Emc
CE, UKCA, FCC, ICES-003 Class AEN IEC 61000-6-4, EN IEC 61000-6-2 (24VDC Input Only)
Environment Electromagnetic Interference Emi
CISPR 32 Conducted & Radiated: Class AEN/BS EN 55032 Conducted & Radiated: Class AEN/BS EN IEC 61000-3-2 Harmonic current emissions: Class AEN/BS EN61000-3-3 Voltage fluctuations & flickerFCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A
Physical Depth
190 mm
Physical Height
41.5 mm
Physical Width
254.5 mm
Power Power Button
1x ATX Power On/Off Button
Power Power Input
9 to 48 VDC, 3-Pin Terminal Block
Power Power Mode Switch
1x AT/ATX Mode Switch
Power Remote Power Onoff
1x Remote Power On/Off, 2-pin Terminal Block
Reliability And Protection Over Voltage Protection
Protection Range: 51~58VProtection Type: shut down operating voltage, re-power on at the present level to recover
Reliability And Protection Reverse Power Input Protection
Yes
Technical Specs Maximum Power Consumption Cv W124
23.75 W
