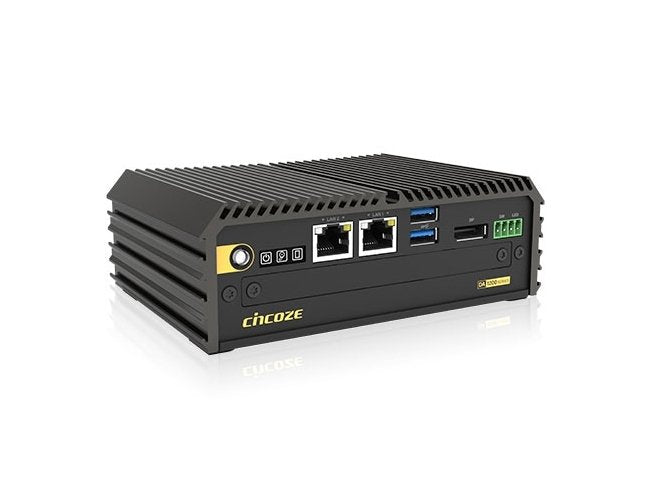

The Cincoze DA-1200-N97-R10 is a palm-sized rugged embedded computer featuring an Intel Alder Lake-N Processor N97, offering exceptional performance for IoT gateway applications in smart manufacturing, logistics, and automation. With compact dimensions (150 x 105 x 52.3 mm) and rugged construction, it meets stringent international standards including EMC, US military shock vibration standards (MIL-STD-810H), and various environmental certifications. This versatile device supports wide operating temperatures (-40 to 70 ºC) and multiple mounting options for seamless integration in diverse settings.
Product Specifications
Additional Information Additional Information

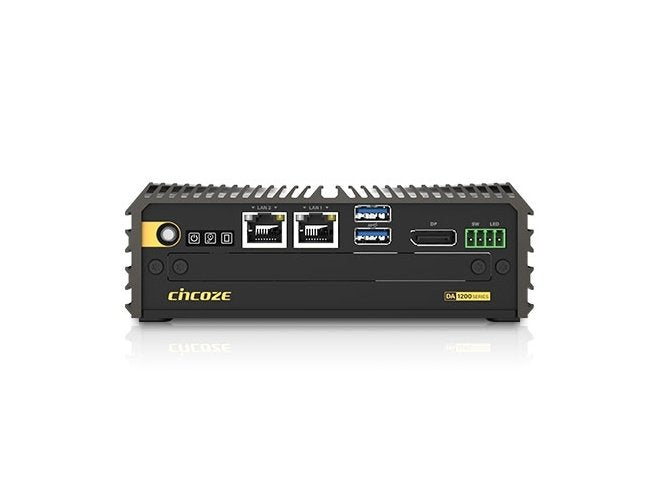

Palm-sizedThe DA-1200 measures 150 x 105 x 52.3 mm and can fit in the palm of your hand.Affordable High PerformanceThe DA-1200 has an Intel® N97 processor based on the Intel® 7 process and up to 16GB of DDR5 memory, giving it excellent overall performance at a highly competitive price.Easy MaintenanceSetup and adjustment of the DA-1200 is quick because key buttons and functions, including the reset switch, clear CMOS switch, AT/ATX switch, and SIM card slot, are all accessible on the front panel maintenance area.Modular ExpansionThe DA-1200 has two M.2 Key B slots (convertible to Key E with an optional M.2 Key B Adapter Card) for wireless cards (5G, Wi-Fi, and GNSS) and storage options that include 2.5" SSD, half-slim SSD, and M.2 SSD.Various InstallationThe DA-1200 supports various mounting methods, including wall mount, side mount, and DIN Rail mount, for installation in various applications.
Environment Electromagnetic Compatibility Emc
CE, UKCA, FCC, ICES-003 Class AEN61000-6-4, EN61000-6-2 (24VDC Input Only)
Environment Electromagnetic Interference Emi
CISPR 32 Conducted & Radiated: Class AEN/BS EN 55032 Conducted & Radiated: Class AEN/BS EN IEC 61000-3-2 Harmonic current emissions: Class AEN/BS EN61000-3-3 Voltage fluctuations & flickerFCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A
Environment Environmental Management System Ems
EN/IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kVEN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 10 V/mEN/IEC 61000-4-4 EFT: AC Power: 2 kV; DC Power: 1 kV; Signal: 1 kVEN/IEC 61000-4-5 Surges: AC Power: 2 kV; Signal: 1 kVEN/IEC 61000-4-6 CS: 10V(Compliant with the standard when utilizing shielded ethernet cable.) EN/IEC 61000-4-8 PFMF: 50 Hz, 30A/mEN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 1 cycles at 60 Hz
Environment Non Condensing Relative Humidity Rh At 70 Degree Cel
95 %
Environment Note For Operating Temperature
PassMark Burn-In Test: 100% CPU, 2D/3D Graphics (without thermal throttling)With extended temperature peripherals; Ambient with air flowAccording to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14
Environment Operating Temperature
-40 to 70 ºC
Environment Safety Standard
Canadian Underwriters Laboratories (cUL) | Certification Body Scheme (CB) | International Electrotechnical Commission/European Norm (IEC/EN) 62368-1 | Low Voltage Directive (LVD) International Electrotechnical Commission/European Norm (IEC/EN) 62368-1 | Underwriters Laboratories (UL)
Environment Shock
MIL-STD-810H
Environment Storage Temperature
-40 to 70 ºC
Environment Vibration
MIL-STD-810H
Expansion Combined Multiple Interface Cmi Inputoutput Io
1x CMI Interface for optional CMI Module Expansion
Expansion M2 Key B Socket
1x M.2 Key B Type 3042/3052 Socket (PCIe Gen 3x1/ USB3.2 Gen2 x1 / SATA), Support 5G/Storage/Add-on Card Expansion1x M.2 Key B Type 2242 (PCIe Gen 3x2), Support Storage/Add-on Card Expansion
Expansion Subscriber Identity Module Sim Socket
1x Front Accessible SIM Socket
Features Features
Onboard Intel® Alder Lake-N Processor N97Ultra Compact Size (150 x 105 x 52.3 mm)1 x DDR5 SO-DIMM Sockets, Supports Up to 4800MHZ, 16GB1 x M.2 Key B Type 3052/3042 Socket for 5G/Storage/Add-on Card Expansion1 x M.2 Key B Type 2242 Socket for Storage/Add-on Card ExpansionOptional CMI modules for I/O expansionWide Operating Temperature -40 ºC to 70 ºCSafety Standard: UL, cUL, CB, IEC, EN 62368-1
Graphics Displayport Dp
1x DisplayPort Connector (4096 x 2304 at 60 Hz,According to CPU Specifications)Verified maximum resolution: 3840 x 2160 at 60 Hz
Graphics Graphics Engine
Integrated Intel® UHD Graphics
Graphics Maximum Display Output
Supports Two Independent Display(Onboard 1x DisplayPort + Optional CMI 1x Display)
Inputoutput Io Ports Local Area Network Lan
2x 2.5GbE LAN, RJ45GbE1: Intel® I225GbE2: Intel® I225
Inputoutput Io Ports Universal Serial Bus Usb
2x 10Gbps USB 3.2 Gen2 x1, Type A
Operating System Linux
Ubuntu 22.04
Operating System Microsoft Windows
Windows® 10 | Windows® 11
Other Function Antenna
2x Antenna Holes
Other Function Clear Complementary Metal Oxide Semiconductor Cmo
1 x Clear CMOS Switch
Other Function Instant Reboot
Support 0.2 sec Instant Reboot technology
Other Function Reset Button
1x Reset Button
Other Function Watchdog Timer
Software Programmable Supports 256 Levels System Reset
Physical Depth
105 mm
Physical Height
52.3 mm
Physical Mechanical Construction
Extruded Aluminum with Heavy Duty Metal
Physical Mounting
DIN Rail | Side | Video Electronics Standards Association (VESA) Mount | Wall
Physical Physical Design
Fanless DesignCable-Less DesignJumper-Less DesignUnibody Design
Physical Width
150 mm
Power Power Button
1x ATX Power On/Off Button
Power Power Input
9 to 48 VDC, 3-Pin Terminal Block
Power Power Mode Switch
1x AT/ATX Mode Switch
Power Remote Power Light Emitting Diode Led
1x Remote Power LED, 2-Pin Terminal Block
Power Remote Power Onoff
1x Remote Power On/Off, 2-pin Terminal Block
Reliability And Protection Over Voltage Protection
Protection Range: 51~58VProtection Type: shut down operating voltage, re-power on at the present level to recover
Reliability And Protection Reverse Power Input Protection
Yes
