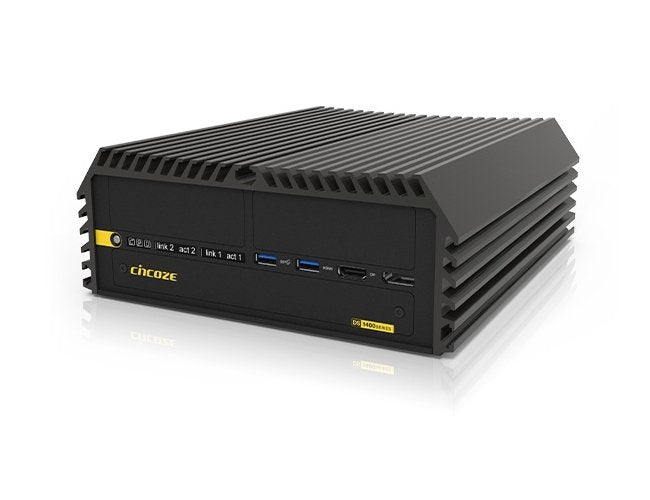

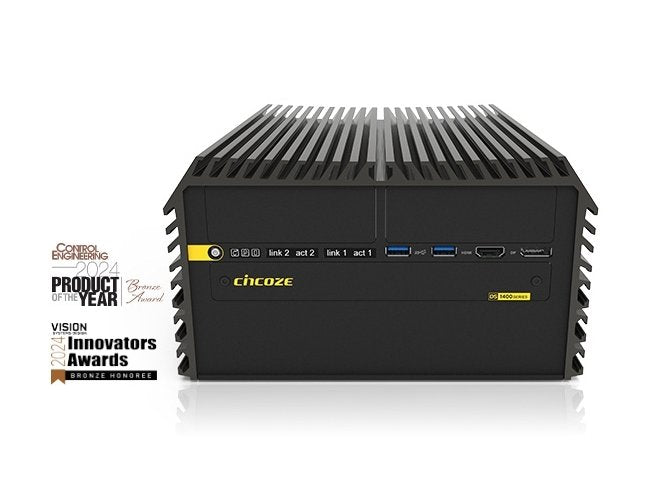

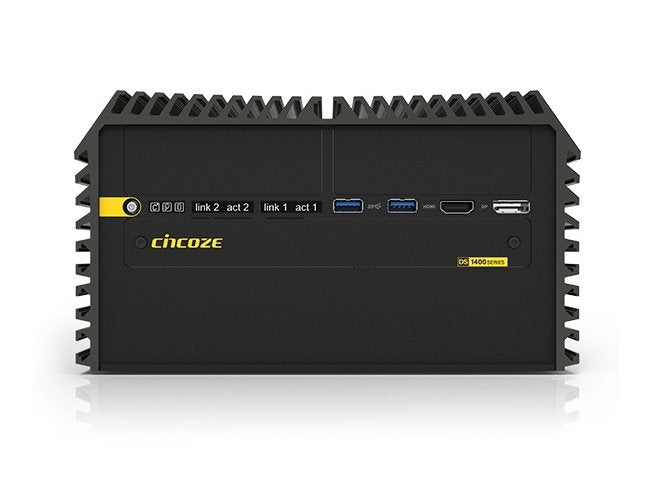

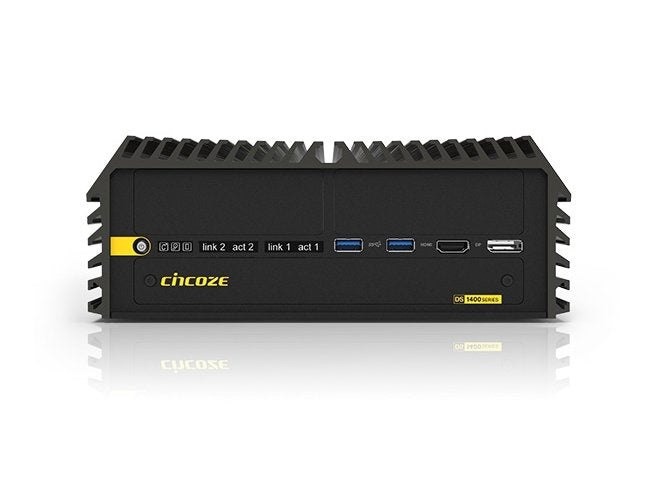

The Cincoze DS-1400-R10 is an industrial-grade, high-performance rugged embedded computer powered by 13th/12th Gen Intel Core processors. With exceptional expandability, this modular system features 24-core processing, ECC memory support up to 64GB, and multiple storage options like SSD/HDD bays and RAID support. Designed for reliability, it meets MIL-STD-810G standards and complies with UL safety certifications for seamless operation in challenging environments. From wide operating temperatures to advanced security features, this versatile system is ideal for AI, edge computing, and demanding industrial applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Additional Information Additional Information
Rapid Processing and InferenceThe DS-1400 Series supports 13/12th gen Intel® Core⢠i9/i7/i5/i3 (Raptor Lake-S/Alder Lake-S) processors based on the Intel® 7 process, with up to 24 cores (8P + 16E) and 32 threads, delivering more than 1.35x the speed of Comet Lake-S platform. The Intel® Xe architecture of the UHD 770 graphics chip boosts GPU image classification inference performance to 2.8x the speed of Comet Lake-S, providing the processing performance needed for AI and edge computing.Industrial I/O and Modular ExpansionThe DS-1400 Series offers a vast array of industrial-focused I/O including up to 2x GbE LAN, 6x USB 3.2, and 2x USB 2.0, 2x RS232/422/485, 2x 2.5" SATA, 3x mSATA, 1x M.2 key M for NVMe SSD, 2x SIM card slots, 3x full-size Mini-PCIe and quad independent displays (DisplayPort, HDMI, VGA). It also features modular expansion through Cincoze®âs CMI/CFM modules, adding additional I/O or other functionality such as high-speed 10GbE LAN, PoE, and IGN (power ignition sensing).PCI/PCIe Add-on CardsThe DS-1400 Series accommodates up to dual PCI/PCIe expansion slots. It can support a maximum of one 110W add-on card with dimensions of 111 x 235 mm. This flexible slot allows integration of I/O, GPU, image capture, data acquisition, and motion control cards to suit specific application needs.Adjustable PCIe Card RetainerA patented adjustable PCIe card retainer can securely fasten add-on cards. This unique design effectively prevents the cards from loosening due to vibrations in high-vibration environments, ensuring the stable operation of the system.Patent No. I773359Robust and ReliableThe DS-1400 Series is built tough, reflected in its industrial-grade protection design and industry certifications in different fields. In addition to features such as wide temperature (-40 - 70ºC), wide voltage input (9 - 48 VDC), overvoltage, overcurrent, and ESD protection, it also complies with the US military shock vibration standard MIL-STD-810G. Product safety and reliability are further ensured with internationally recognized UL 62368-1 safety certification. For more secure railway computing, it also passes the EMC EN 50121-3-2 standard in EN 50155.
Audio Audio Codec
Realtek® ALC888, High Definition Audio
Audio Line Out
1x Line-Out, Phone Jack 3.5 mm
Audio Mic In
1x Mic-in, Phone Jack 3.5 mm
Environment Electromagnetic Compatibility Emc
CE, UKCA, FCC, ICES-003 Class AEN 50155 (EN 50121-3-2 Only)
Environment Electromagnetic Interference Emi
CISPR 32 Conducted & Radiated: Class A EN/BS EN 50121-3-2 Conducted & Radiated: Class A EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A EN/BS EN61000-3-3 Voltage fluctuations & flicker FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A
Environment Environmental Management System Ems
EN/IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 20 V/m EN/IEC 61000-4-4 EFT: AC Power: 2 kV; Signal: 2 kV EN/IEC 61000-4-5 Surges: AC Power: 2 kV EN/IEC 61000-4-6 CS: 10V EN/IEC 61000-4-8 PFMF: 50 Hz, 1A/m EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 0.5 cycles at 50 Hz
Environment Non Condensing Relative Humidity Rh At 70 Degree Cel
95 %
Environment Operating Temperature
35W TDP Processor: -40ºC to 70ºC 65W TDP Processor: -40ºC to 50ºC (With External Fan Kit) With extended temperature peripherals; Ambient with air flow According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14
Environment Safety Standard
Canadian Underwriters Laboratories (cUL) | Certification Body Scheme (CB) | International Electrotechnical Commission/European Norm (IEC/EN) 62368-1 | Low Voltage Directive (LVD) International Electrotechnical Commission/European Norm (IEC/EN) 62368-1 | Underwriters Laboratories (UL)
Environment Shock
MIL-STD-810G
Environment Storage Temperature
-40 to 85 ºC
Environment Vibration
MIL-STD-810G
Expansion Combined Multiple Interface Cmi Inputoutput Io
2 x High Speed CMI Interface for optional CMI Module Expansion 2 x Low Speed CMI Interface for optional CMI Module Expansion
Expansion Control Function Module Cfm Inputoutput Io Interface
1 x CFM IGN Interface for optional CFM-IGN Module Expansion
Expansion Mini Peripheral Component Interconnect Express Pcie
3 x Full-size Mini-PCIe Socket
Expansion Subscriber Identity Module Sim Socket
2 x SIM Socket
Features Features
Intel® 13/12th Gen Raptor Lake-S/Alder Lake-S Core⢠i9/i7/i5/i3 Processors (max 65 W TDP) 2 x DDR5 SO-DIMM Sockets, Supports ECC/non ECC type Memory, Up to 4800MHz, 64GB 2x GbE LAN and optional 2x 10GbE LAN 2x 2.5" SATA storage, 3x mSATA sockets, 1x M.2 key M for NVMe SSD Optional CMI modules for I/O expansion Optional CFM modules for ignition sensing & PoE Wide operating temperature -40 ºC to 70 ºC MIL-STD-810G military standard and EN50155 (EN 50121-3-2 only) Safety Standard: UL, cUL, CB, IEC, EN 62368-1 Support Intel® OpenVINO⢠Dev Kit Intel® ESDQ (Edge Software Device Qualification) Certified: the Edge Insights for AMR software package
Graphics Displayport Dp
2x DisplayPort Connector (4096 x 2304 at 60 Hz)Verified maximum DP resolution: 3840 x 2160 at 60 Hz
Graphics Graphics Engine
Integrated Intel® UHD Graphics 770: Core⢠i9/i7/i5Integrated Intel® UHD Graphics 730: Core⢠i3Integrated Intel® UHD Graphics 710: Pentium®/Celeron®
Graphics High Definition Multimedia Interface Hdmi
1x HDMI Connector : 4096x2160 at 30Hz(Verified maximum resolution: 3840x2160 at 30Hz)
Graphics Maximum Display Output
Supports Quad Independent Display
Graphics Video Graphics Array Vga
1x VGA Connector (1920 x 1080 at 60 Hz)

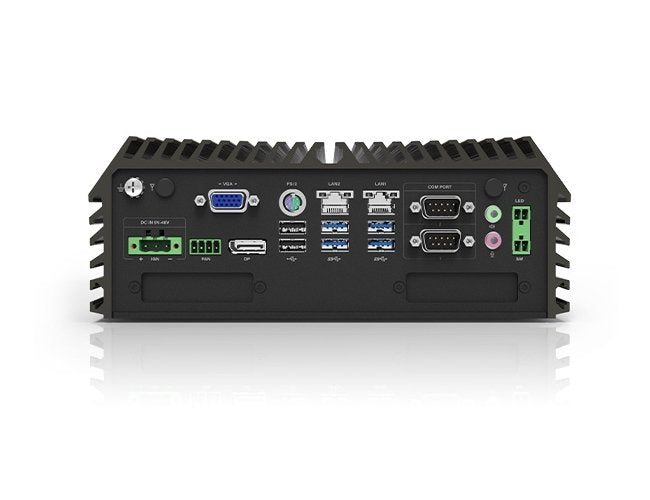

Inputoutput Io Ports Communication Port Com
2x RS-232/422/485 with Auto Flow Control Support 5V/12V, DB9
Inputoutput Io Ports Local Area Network Lan
2 x GbE LAN, RJ45GbE1: Intel® I219GbE2: Intel® I210
Inputoutput Io Ports Ps2
1 x PS/2, 6 Pin Mini-DIN Female Connector
Inputoutput Io Ports Universal Serial Bus Usb
2 x USB 3.2 Gen2x1 (10Gbps), Type A4 x USB 3.2 Gen1x1 (5 Gbps), Type A2 x USB 2.0 (480 Mbps), Type A
Operating System Linux
Ubuntu 22.04
Operating System Microsoft Windows
Windows® 10 | Windows® 11
Other Function Power Ignition Sensing
Support Power Ignition Sensing Function with Delay Time Management and Selectable 12V/24V (With Optional CFM Module)
Physical Depth
261 mm
Physical Height
88 mm
Physical Width
227 mm
Power Power Button
1 x ATX Power On/Off Button
Power Power Input
9 to 48 VDC, 3-Pin Terminal Block
Power Power Mode Switch
1 x AT/ATX Mode Switch
Power Remote Power Light Emitting Diode Led
1x Remote Power LED, 2-Pin Terminal Block
Power Remote Power Onoff
1 x Remote Power On/Off, 2-Pin Terminal Block
Reliability And Protection Over Voltage Protection
Protection Range: 51~58VProtection Type: shut down operating voltage, re-power on at the present level to recover
Reliability And Protection Reverse Power Input Protection
Yes
