Cincoze DS-1401 High Performance Rugged Embedded Computer
Cincoze DS-1401 High Performance Rugged Embedded Computer
SKU:RUG-bb8a62
Powerful and reliable rugged embedded computer with Intel Core processors, DDR5 memory, wide temperature range, and industrial-grade protection.
Regular price
$1,999.00
Regular price
Sale price
$1,999.00
Unit price
per
Initiate Order
Cincoze DS-1401 High Performance Rugged Embedded Computer
$1,999.00
Quantity: 1
Claim Your Seller Account
Cincoze DS-1401 High Performance Rugged Embedded Computer
$1,999.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

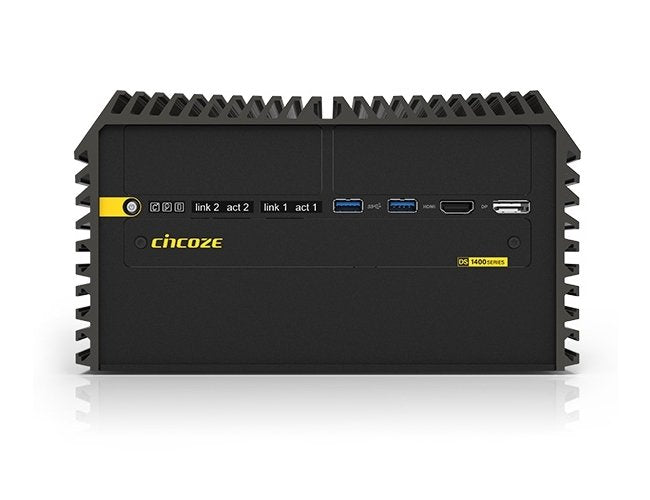

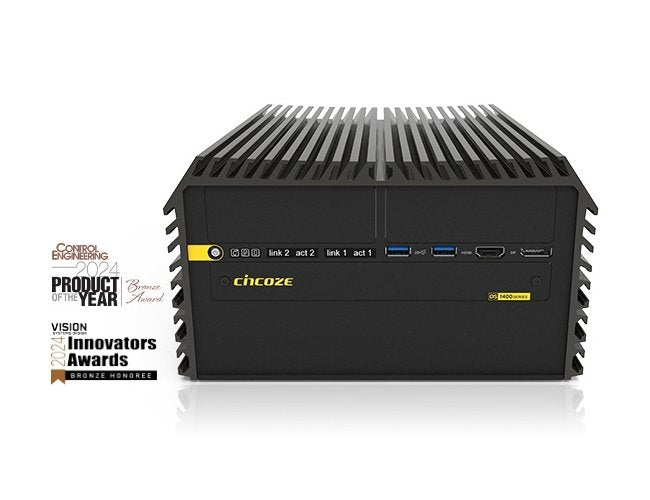

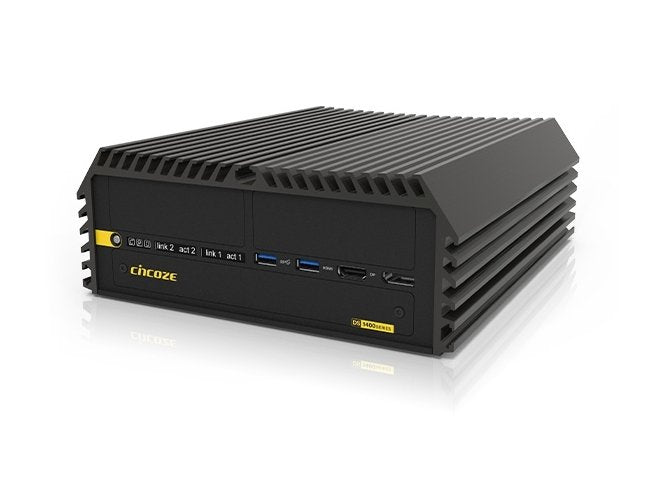

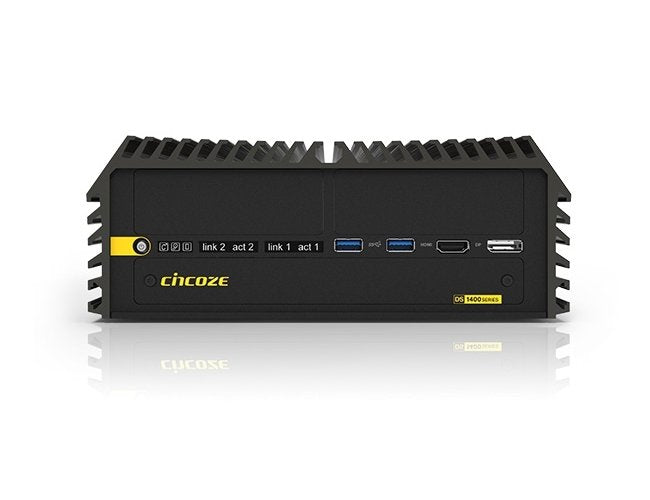

The Cincoze DS-1401-R10 is a cutting-edge rugged embedded computer built for high performance and expandability, featuring 13th/12th Gen Intel Core processors, DDR5 memory support up to 64GB, integrated UHD graphics, multiple I/O ports, RAID support, and wide operating temperature range. Designed to meet stringent industrial standards like MIL-STD-810G and EN 50155, this system offers reliability and robustness for mission-critical applications.
Product Specifications
Additional Information Additional Information
Rapid Processing and InferenceThe DS-1400 Series supports 13/12th gen Intel® Core⢠i9/i7/i5/i3 (Raptor Lake-S/Alder Lake-S) processors based on the Intel® 7 process, with up to 24 cores (8P + 16E) and 32 threads, delivering more than 1.35x the speed of Comet Lake-S platform. The Intel® Xe architecture of the UHD 770 graphics chip boosts GPU image classification inference performance to 2.8x the speed of Comet Lake-S, providing the processing performance needed for AI and edge computing.Industrial I/O and Modular ExpansionThe DS-1400 Series offers a vast array of industrial-focused I/O including up to 2x GbE LAN, 6x USB 3.2, and 2x USB 2.0, 2x RS232/422/485, 2x 2.5" SATA, 3x mSATA, 1x M.2 key M for NVMe SSD, 2x SIM card slots, 3x full-size Mini-PCIe and quad independent displays (DisplayPort, HDMI, VGA). It also features modular expansion through Cincoze®âs CMI/CFM modules, adding additional I/O or other functionality such as high-speed 10GbE LAN, PoE, and IGN (power ignition sensing).PCI/PCIe Add-on CardsThe DS-1400 Series accommodates up to dual PCI/PCIe expansion slots. It can support a maximum of one 110W add-on card with dimensions of 111 x 235 mm. This flexible slot allows integration of I/O, GPU, image capture, data acquisition, and motion control cards to suit specific application needs.Adjustable PCIe Card RetainerA patented adjustable PCIe card retainer can securely fasten add-on cards. This unique design effectively prevents the cards from loosening due to vibrations in high-vibration environments, ensuring the stable operation of the system.Patent No. I773359Robust and ReliableThe DS-1400 Series is built tough, reflected in its industrial-grade protection design and industry certifications in different fields. In addition to features such as wide temperature (-40 - 70ºC), wide voltage input (9 - 48 VDC), overvoltage, overcurrent, and ESD protection, it also complies with the US military shock vibration standard MIL-STD-810G. Product safety and reliability are further ensured with internationally recognized UL 62368-1 safety certification. For more secure railway computing, it also passes the EMC EN 50121-3-2 standard in EN 50155.
Audio Audio Codec
Realtek® ALC888, High Definition Audio
Audio Line Out
1x Line-Out, Phone Jack 3.5 mm
Audio Mic In
1x Mic-in, Phone Jack 3.5 mm
Environment Electromagnetic Compatibility Emc
CE, UKCA, FCC, ICES-003 Class AEN 50155 (EN 50121-3-2 Only)
Environment Electromagnetic Interference Emi
CISPR 32 Conducted & Radiated: Class A EN/BS EN 50121-3-2 Conducted & Radiated: Class A EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A EN/BS EN61000-3-3 Voltage fluctuations & flicker FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A
Environment Environmental Management System Ems
EN/IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 20 V/m EN/IEC 61000-4-4 EFT: AC Power: 2 kV; Signal: 2 kV EN/IEC 61000-4-5 Surges: AC Power: 2 kV EN/IEC 61000-4-6 CS: 10V EN/IEC 61000-4-8 PFMF: 50 Hz, 1A/m EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 0.5 cycles at 50 Hz
Environment Non Condensing Relative Humidity Rh At 70 Degree Cel
95 %
Environment Operating Temperature
35W TDP Processor: -40ºC to 70ºC 65W TDP Processor: -40ºC to 50ºC (With External Fan Kit) With extended temperature peripherals; Ambient with air flow According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14
Environment Safety Standard
Canadian Underwriters Laboratories (cUL) | Certification Body Scheme (CB) | International Electrotechnical Commission/European Norm (IEC/EN) 62368-1 | Low Voltage Directive (LVD) International Electrotechnical Commission/European Norm (IEC/EN) 62368-1 | Underwriters Laboratories (UL)
Environment Shock
MIL-STD-810G
Environment Storage Temperature
-40 to 85 ºC
Environment Vibration
MIL-STD-810G
Expansion Combined Multiple Interface Cmi Inputoutput Io
2 x High Speed CMI Interface for optional CMI Module Expansion 2 x Low Speed CMI Interface for optional CMI Module Expansion
Expansion Control Function Module Cfm Inputoutput Io Interface
1 x CFM IGN Interface for optional CFM-IGN Module Expansion
Expansion Mini Peripheral Component Interconnect Express Pcie
3 x Full-size Mini-PCIe Socket
Expansion Peripheral Component Interconnect Pci Express
1 x PCI/PCIe Expansion Slot with Optional Riser Card(Supports maximum dimensions of add-on card (H x L): 111 x 235 mm)
Expansion Subscriber Identity Module Sim Socket
2 x SIM Socket
Features Features
Intel® 13/12th Gen Raptor Lake-S/Alder Lake-S Core⢠i9/i7/i5/i3 Processors (max 65 W TDP) 2 x DDR5 SO-DIMM Sockets, Supports ECC/non ECC type Memory, Up to 4800MHz, 64GB 2x GbE LAN and optional 2x 10GbE LAN 2x 2.5" SATA storage, 3x mSATA sockets, 1x M.2 key M for NVMe SSD 1x PCI/PCIe expansion slot Optional CMI modules for I/O expansion Optional CFM modules for ignition sensing & PoE Wide operating temperature -40 ºC to 70 ºC MIL-STD-810G military standard and EN50155 (EN 50121-3-2 only) Safety Standard: UL, cUL, CB, IEC, EN 62368-1 Support Intel® OpenVINO⢠Dev Kit Intel® ESDQ (Edge Software Device Qualification) Certified: the Edge Insights for AMR software package
Graphics Displayport Dp
2x DisplayPort Connector (4096 x 2304 at 60 Hz)Verified maximum DP resolution: 3840 x 2160 at 60 Hz
Graphics Graphics Engine
Integrated Intel® UHD Graphics 770: Core⢠i9/i7/i5Integrated Intel® UHD Graphics 730: Core⢠i3Integrated Intel® UHD Graphics 710: Pentium®/Celeron®
Graphics High Definition Multimedia Interface Hdmi
1x HDMI Connector : 4096x2160 at 30Hz(Verified maximum resolution: 3840x2160 at 30Hz)
Graphics Maximum Display Output
Supports Quad Independent Display
Graphics Video Graphics Array Vga
1x VGA Connector (1920 x 1080 at 60 Hz)

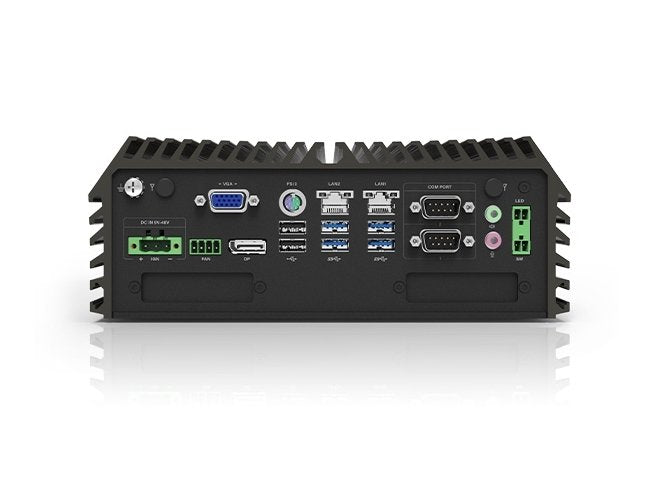

Inputoutput Io Ports Communication Port Com
2x RS-232/422/485 with Auto Flow Control Support 5V/12V, DB9
Inputoutput Io Ports Local Area Network Lan
2 x GbE LAN, RJ45GbE1: Intel® I219GbE2: Intel® I210
Inputoutput Io Ports Ps2
1 x PS/2, 6 Pin Mini-DIN Female Connector
Inputoutput Io Ports Universal Serial Bus Usb
2 x USB 3.2 Gen2x1 (10Gbps), Type A4 x USB 3.2 Gen1x1 (5 Gbps), Type A2 x USB 2.0 (480 Mbps), Type A
Operating System Linux
Ubuntu 22.04
Other Function Power Ignition Sensing
Support Power Ignition Sensing Function with Delay Time Management and Selectable 12V/24V (With Optional CFM Module)
Physical Depth
261 mm
Physical Height
108 mm
Physical Width
227 mm
Power Power Button
1 x ATX Power On/Off Button
Power Power Input
9 to 48 VDC, 3-Pin Terminal Block
Power Power Mode Switch
1 x AT/ATX Mode Switch
Power Remote Power Light Emitting Diode Led
1x Remote Power LED, 2-Pin Terminal Block
Power Remote Power Onoff
1 x Remote Power On/Off, 2-Pin Terminal Block
Reliability And Protection Over Voltage Protection
Protection Range: 51~58VProtection Type: shut down operating voltage, re-power on at the present level to recover
Reliability And Protection Reverse Power Input Protection
Yes
