Cincoze Industrial Panel PC CV-117C-R11/P2202
Cincoze Industrial Panel PC CV-117C-R11/P2202
SKU:IND-1c44cf
Redefine industrial computing with Cincoze's powerful 17" Modular Panel PC, featuring Intel® Core™ i5, advanced graphics, and robust construction.
Regular price
$1,899.99
Regular price
Sale price
$1,899.99
Unit price
per
Initiate Order
Cincoze Industrial Panel PC CV-117C-R11/P2202
$1,899.99
Quantity: 1
Claim Your Seller Account
Cincoze Industrial Panel PC CV-117C-R11/P2202
$1,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

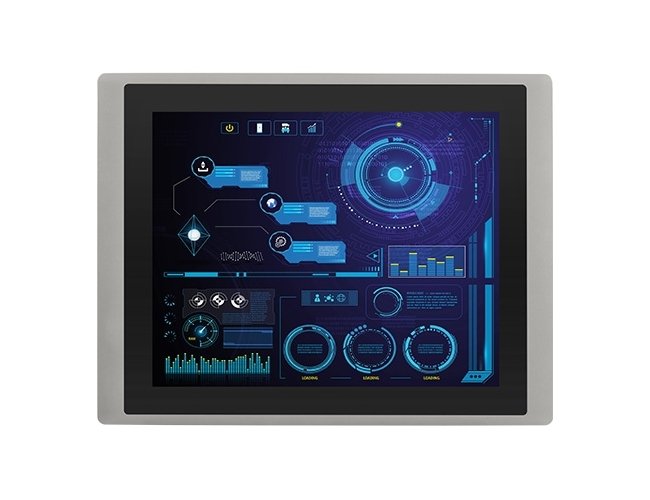

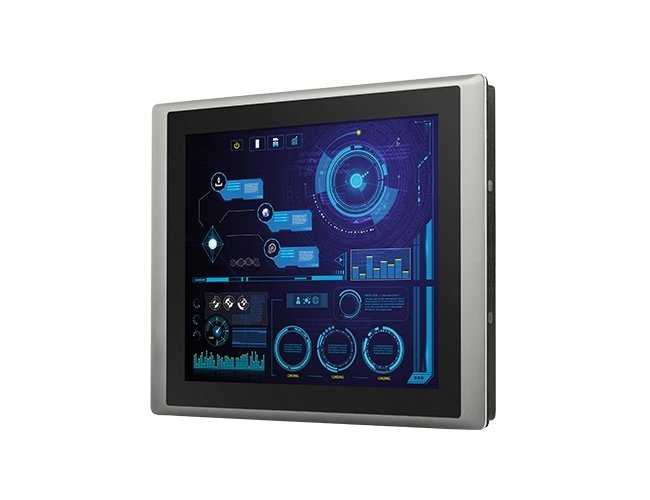

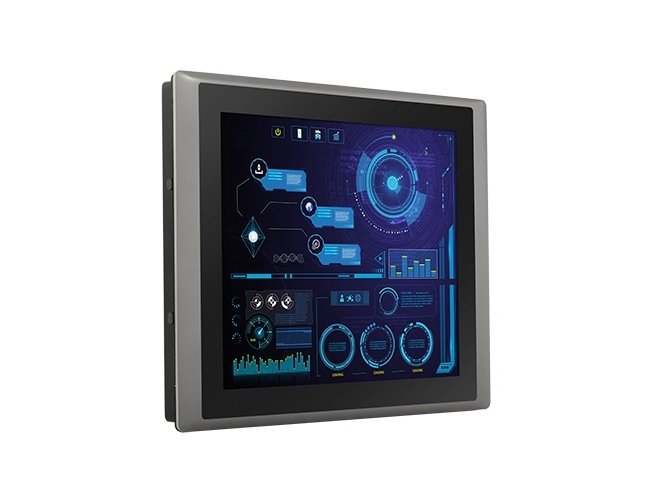

The Cincoze Industrial Panel PC CV-117C-R11/P2202 combines robust performance with advanced functionality to meet the demanding requirements of industrial and government applications. Powered by the 12th Gen Intel® Core™ i5-1245UE Processor, this modular panel PC features a 17" TFT SXGA 5:4 display with a projected capacitive touch interface. With compatibility for various operating systems and a range of communication ports and expansion options, this Industrial Panel PC offers reliability, security, and seamless integration for institutional procurement needs.
Product Specifications
Additional Information Additional Information
Excellent Computing PerformanceThe CV-100/P2202 series is equipped with the 12th Gen Intel® Core⢠i5/i3 U-series (Alder Lake-P) processor based on the Intel® 7 process. The U-series has a low power consumption of only 15W, boasts excellent performance with up to 10 Coreâ¢s (2P+8E), and includes the built-in Intel® Iris® Xe graphics to easily handle image classification inference performance in AI deep learning.CDS Patented TechnologyCincoze® Convertible Display System (CDS) patented technology makes field-side maintenance and future upgrades easier. Replacing a display or improving system performance only requires replacing a single component, which significantly cuts upgrade costs.Patent No. M482908Complete Range of SizesThe CV-100/P2202 series has a diverse product portfolio, ranging from screen size (12 to 24 inches), display ratio (4:3, 5:4, and 16:9) to touch methods (multi-point P-Cap and single-point resistive), which can be selected based on application requirements.Rugged, Safe, and more ReliableTo face harsh and rugged usage environments, the CV-100/P2202 series has a series of industrial-grade protections, including a wide operating temperature range (-20°C to 70°C), a wide range DC power input (9 to 48VDC), and a dustproof/water resistant IP65 front panel, which is beneficial for applications such as field-side HMI or production process visualization.
Audio Audio Codec
Realtek® ALC888, High Definition Audio
Audio Line Out
1x Line-Out, Phone Jack 3.5 mm
Audio Mic In
1x Mic-in, Phone Jack 3.5 mm
Cv 117 Backlight Mean Time Between Failures Mtbf Cv 117
50,000 h
Cv 117 Brightness Cv 117
350 cd/m²
Cv 117 Contrast Ratio Cv 117
800:1
Cv 117 Depth Cv 117
350 mm
Cv 117 Electromagnetic Compatibility Emc Cv 117
European Conformity (CE) | Federal Communications Commission (FCC) | Interference-Causing Equipment Standard 003 (ICES-003 Class A) | United Kingdom Conformity Assessed (UKCA)
Cv 117 Electromagnetic Interference Emi Cv 117
CISPR 32 Conducted & Radiated: Class AEN/BS EN 55032 Conducted & Radiated: Class AEN/BS EN IEC 61000-3-2 Harmonic current emissions: Class AEN/BS EN61000-3-3 Voltage fluctuations & flickerFCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A
Cv 117 Environmental Management System Ems Cv 117
EN/IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kVEN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 3 V/mEN/IEC 61000-4-4 EFT: AC Power: 1 kV; DC Power: 0.5 kV; Signal: 0.5 kVEN/IEC 61000-4-5 Surges: AC Power: 2 kV; Signal: 1 kVEN/IEC 61000-4-6 CS: 3VEN/IEC 61000-4-8 PFMF: 50 Hz, 1A/mEN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 0.5 cycles at 50 Hz
Cv 117 Front Panel Protection Cv 117
IP 65 Compliant
Cv 117 Height Cv 117
63.2 mm
Cv 117 Liquid Crystal Display Lcd Color Cv 117
16.7M
Cv 117 Liquid Crystal Display Lcd Size Cv 117
17 in | 5:4
Cv 117 Maximum Power Consumption Cv 117
18.85 W
Cv 117 Maximum Resolution Cv 117
1280 x 1024
Cv 117 Mechanical Construction Cv 117
Die-Casting Flat Surface
Cv 117 Non Condensing Relative Humidity Rh At 50 Degree Celsius
80 %
Cv 117 Note For Operating Temperature Cv 117
with Industrial Grade peripherals; Ambient with air flow
Cv 117 Operating Temperature Cv 117
-20 to 80 ºC
Cv 117 Pixel Pitch Horizontal Cv 117
0.264 mm
Cv 117 Pixel Pitch Vertical Cv 117
0.264 mm
Cv 117 Safety Cv 117
Canadian Underwriters Laboratories (cUL) | Certification Body (CB) | European Norm (EN 62368-1) | International Electrotechnical Commission (IEC) | Underwriters Laboratories (UL)
Cv 117 Storage Temperature Cv 117
-30 to 80 ºC
Cv 117 Touchscreen Type Cv 117
Projected Capacitive
Cv 117 Viewing Angle Horizontal Vertical H V Cv 117
160/140
Cv 117 Weight Cv 117
5.64 kg
Cv 117 Width Cv 117
450 mm
Environment Electromagnetic Compatibility Emc
CE, UKCA, FCC, ICES-003 Class AEN IEC 61000-6-4, EN IEC 61000-6-2 (24VDC Input Only)
Environment Electromagnetic Interference Emi
CISPR 32 Conducted & Radiated: Class AEN/BS EN 55032 Conducted & Radiated: Class AEN/BS EN IEC 61000-3-2 Harmonic current emissions: Class AEN/BS EN61000-3-3 Voltage fluctuations & flickerFCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A
Physical Depth
190 mm
Physical Height
41.5 mm
Physical Width
254.5 mm
Power Power Button
1x ATX Power On/Off Button
Power Power Input
9 to 48 VDC, 3-Pin Terminal Block
Power Power Mode Switch
1x AT/ATX Mode Switch
Power Remote Power Onoff
1x Remote Power On/Off, 2-pin Terminal Block
Reliability And Protection Over Voltage Protection
Protection Range: 51~58VProtection Type: shut down operating voltage, re-power on at the present level to recover
Reliability And Protection Reverse Power Input Protection
Yes
