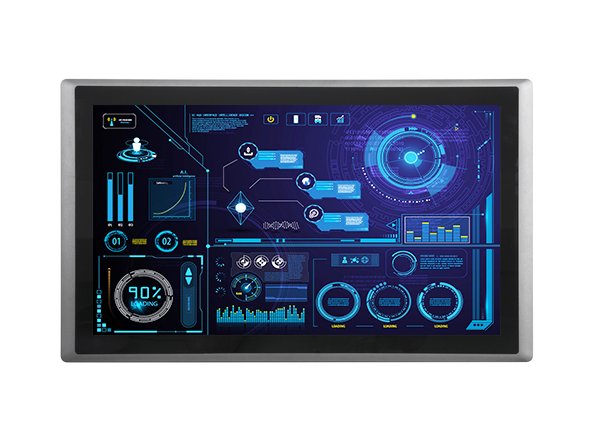

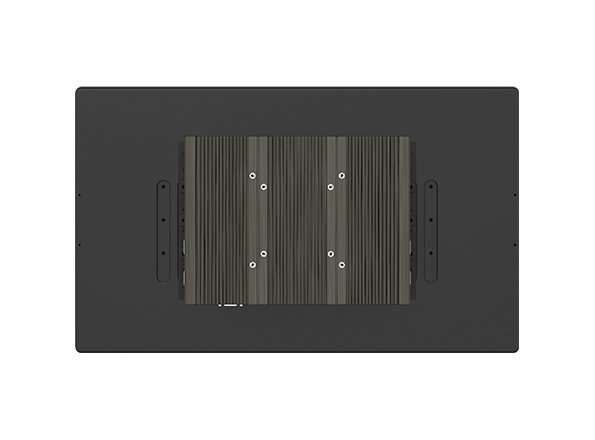

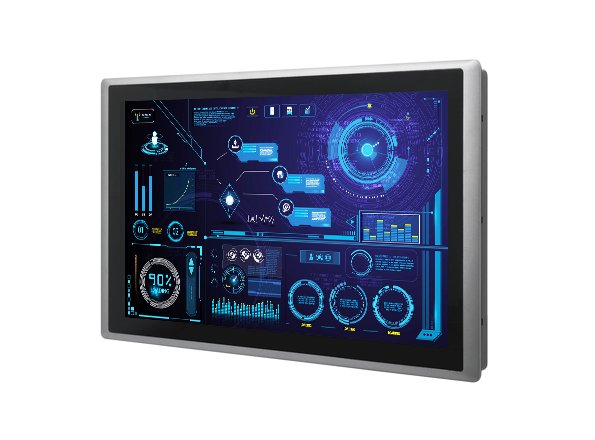

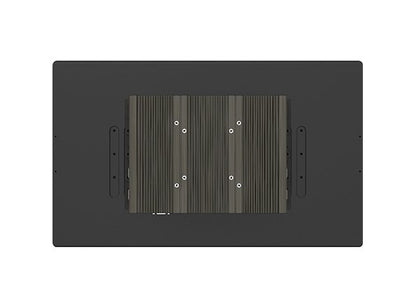

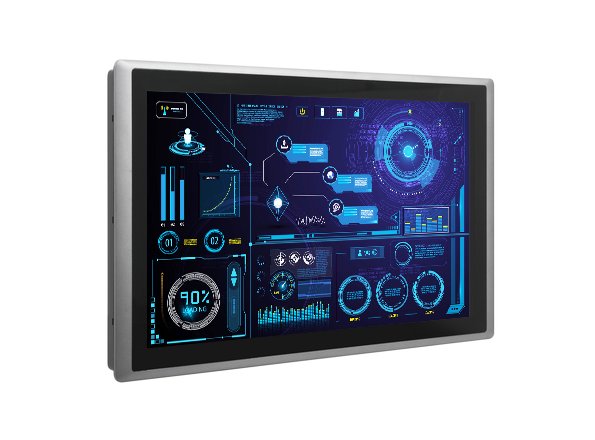

The Cincoze CV-W121C-R11-P2202-I5-R10 Industrial Panel PC offers exceptional computing performance with a 12th Gen Intel Core i5 processor, versatile screen sizes, and robust expansion capabilities. Designed for industrial use, this rugged panel PC features IP65 protection, a wide operating temperature range, and compatibility with various industrial standards. With a comprehensive selection of I/O interfaces, advanced graphics capabilities, and Cincoze's patented CDS technology for easy upgrades, this modular panel PC is ideal for equipment machine HMI and production process visualization applications.
Product Specifications
Additional Information Additional Information
Excellent Computing PerformanceThe CV-100/P2202 series is equipped with the 12th Gen Intel® Core⢠i5/i3 U-series (Alder Lake-P) processor based on the Intel® 7 process. The U-series has a low power consumption of only 15W, boasts excellent performance with up to 10 cores (2P+8E), and includes the built-in Intel® Iris® Xe graphics to easily handle image classification inference performance in AI deep learning.CDS Patented TechnologyCincoze® Convertible Display System (CDS) patented technology makes field-side maintenance and future upgrades easier. Replacing a display or improving system performance only requires replacing a single component, which significantly cuts upgrade costs.Patent No. M482908Complete Range of SizesThe CV-100/P2202 series has a diverse product portfolio, ranging from screen size (12 to 24 inches), display ratio (4:3, 5:4, and 16:9) to touch methods (multi-point P-Cap and single-point resistive), which can be selected based on application requirements.Rugged, Safe, and more ReliableTo face harsh and rugged usage environments, the CV-100/P2202 series has a series of industrial-grade protections, including a wide operating temperature range (-20ºC to 70ºC), a wide range DC power input (9 to 48VDC), and a dustproof/water resistant IP65 front panel, which is beneficial for applications such as field-side HMI or production process visualization.
Audio Audio Codec
Realtek® ALC888, High Definition Audio
Audio Line Out
1x Line-Out, Phone Jack 3.5 mm
Audio Mic In
1x Mic-in, Phone Jack 3.5 mm
Cv W121 Backlight Mean Time Between Failures Mtbf Cv W121
50,000 h
Cv W121 Brightness Cv W121
300 cd/m²
Cv W121 Contrast Ratio Cv W121
5000:1
Cv W121 Depth Cv W121
330.5 mm
Cv W121 Electromagnetic Compatibility Emc Cv W121
European Conformity (CE) | Federal Communications Commission (FCC) | Interference-Causing Equipment Standard 003 (ICES-003 Class A) | United Kingdom Conformity Assessed (UKCA)
Cv W121 Electromagnetic Interference Emi Cv W121
CISPR 32 Conducted & Radiated: Class AEN/BS EN 55032 Conducted & Radiated: Class AEN/BS EN IEC 61000-3-2 Harmonic current emissions: Class AEN/BS EN61000-3-3 Voltage fluctuations & flickerFCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A
Cv W121 Environmental Management System Ems Cv W121
EN/IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kVEN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 3 V/mEN/IEC 61000-4-4 EFT: AC Power: 1 kV; DC Power: 0.5 kV; Signal: 0.5 kVEN/IEC 61000-4-5 Surges: AC Power: 2 kV; Signal: 1 kVEN/IEC 61000-4-6 CS: 3VEN/IEC 61000-4-8 PFMF: 50 Hz, 1A/mEN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 0.5 cycles at 50 Hz
Cv W121 Front Panel Protection Cv W121
IP 65 Compliant
Cv W121 Height Cv W121
63.2 mm
Cv W121 Liquid Crystal Display Lcd Color Cv W121
16.7M
Cv W121 Liquid Crystal Display Lcd Size Cv W121
21.5 in | 16:9
Cv W121 Maximum Power Consumption Cv W121
24.8 W
Cv W121 Maximum Resolution Cv W121
1920 x 1080
Cv W121 Mechanical Construction Cv W121
Die-Casting Flat Surface
Cv W121 Non Condensing Relative Humidity Rh At 50 Degree Celsius
80 %
Cv W121 Operating Temperature Cv W121
0ºC to 60ºC (with Industrial Grade peripherals; Ambient with air flow)
Cv W121 Pixel Pitch Horizontal Cv W121
0.24825 mm
Cv W121 Pixel Pitch Vertical Cv W121
0.24825 mm
Cv W121 Safety Cv W121
Canadian Underwriters Laboratories (cUL) | Certification Body (CB) | European Norm (EN 62368-1) | International Electrotechnical Commission (IEC) | Underwriters Laboratories (UL)
Cv W121 Storage Temperature Cv W121
-20 to 60 ºC
Cv W121 Touchscreen Type Cv W121
Projected Capacitive
Cv W121 Viewing Angle Horizontal Vertical H V Cv W121
178/178
Cv W121 Weight Cv W121
5.56 kg
Cv W121 Width Cv W121
550 mm
Environment Electromagnetic Compatibility Emc
CE, UKCA, FCC, ICES-003 Class AEN IEC 61000-6-4, EN IEC 61000-6-2 (24VDC Input Only)
Environment Electromagnetic Interference Emi
CISPR 32 Conducted & Radiated: Class AEN/BS EN 55032 Conducted & Radiated: Class AEN/BS EN IEC 61000-3-2 Harmonic current emissions: Class AEN/BS EN61000-3-3 Voltage fluctuations & flickerFCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A
Environment Environmental Management System Ems
EN/IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kVEN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 10 V/mEN/IEC 61000-4-4 EFT: AC Power: 2 kV; DC Power: 1 kV; Signal: 1 kVEN/IEC 61000-4-5 Surges: AC Power: 2 kV; Signal: 1 kVEN/IEC 61000-4-6 CS: 10VEN/IEC 61000-4-8 PFMF: 50 Hz, 30A/mEN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 1 cycles at 60 Hz
Physical Depth
190 mm
Physical Height
41.5 mm
Physical Width
254.5 mm
Power Power Button
1x ATX Power On/Off Button
Power Power Input
9 to 48 VDC, 3-Pin Terminal Block
Power Power Mode Switch
1x AT/ATX Mode Switch
Power Remote Power Onoff
1x Remote Power On/Off, 2-pin Terminal Block
Reliability And Protection Over Voltage Protection
Protection Range: 51~58VProtection Type: shut down operating voltage, re-power on at the present level to recover
Reliability And Protection Reverse Power Input Protection
Yes
