Circuit Board Support: .093 Thick PCB (.156 B. Hole) x .187 Chassis Hole

Name: Circuit Board Support: .093 Thick PCB (.156 B. Hole) x .187 Chassis Hole
Brand: All Electronics Hardware
SKU: 01C-cd3fb9
Price: 39.99 USD
Availability: OutOfStock

SKU:01C-cd3fb9

Quality Circuit Board Support for .093 Thick PCBs with .156 Board Hole & .187 Chassis Hole

$39.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

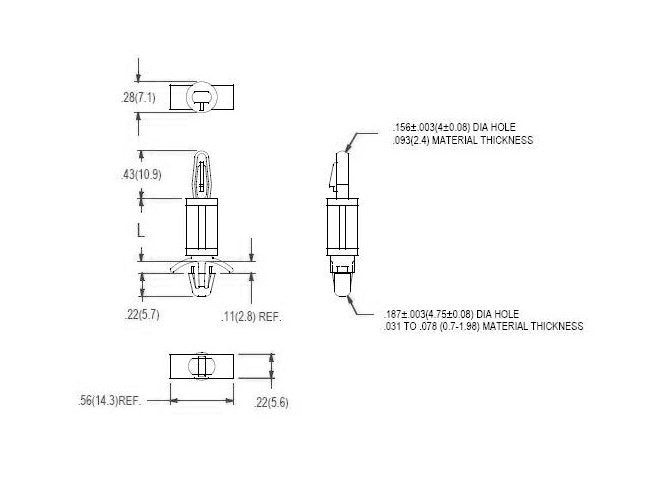

The 13-3 Series Circuit Board Support is designed for .093 thick PCBs, featuring a .156-inch board hole and a .187-inch chassis hole. Each bag contains 1000 supports made of Nylon 66 UL94V-2 material, with UL File No: E70062 certification for reliability. These supports are RoHS compliant, resilient against temperatures ranging from -40 to 185F, and meet ASTM D 4066 and PA111 standards. Optional UL94V-0 material available upon request for enhanced flame resistance.

Product Specifications

Specifications Board Thickness

.093 (2.4) inches (mm)

Specifications Chassis Thickness

.031 - .078 (.7-1.98) inches (mm)

Specifications Dim L 015

.750 (19.1) inches (mm)
