Circuit Board Support - .093 Thick PCB, Nylon 66, UL94V-2, 1000/bag
Circuit Board Support - .093 Thick PCB, Nylon 66, UL94V-2, 1000/bag
SKU:01C-aeb94a
Sturdy Circuit Board Support for .093 Thick PCBs, Nylon 66, UL94V-2, ASTM D 4066, RoHS, -40 to 185F
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Circuit Board Support - .093 Thick PCB, Nylon 66, UL94V-2, 1000/bag
$24.99
Quantity: 1
Claim Your Seller Account
Circuit Board Support - .093 Thick PCB, Nylon 66, UL94V-2, 1000/bag
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 13-3 Series Circuit Board Support is designed for .093-inch thick PCBs, offering reliable support and stability during installation. Each item is constructed from Nylon 66 material with UL94V-2 fire resistance rating (UL94V-0 upgrade available), ensuring safety and durability. With a temperature range of -40 to 185F (-40 to 85C), this support is suitable for various operating conditions. Compliance with ASTM D 4066, PA111 standards and RoHS directives makes it ideal for environmentally conscious projects.

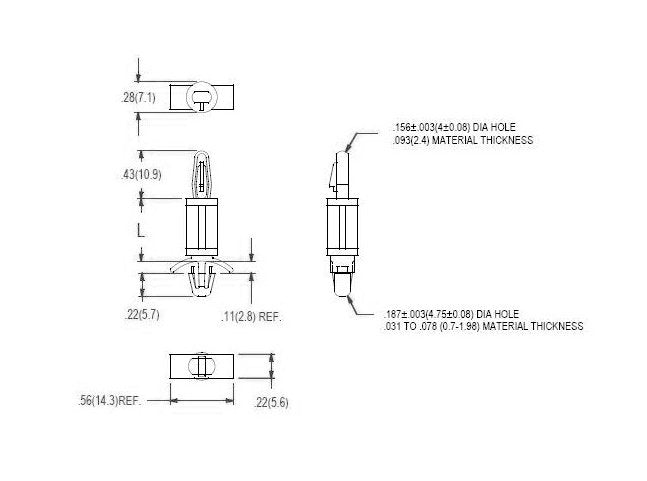

Product Specifications
Specifications Board Thickness
.093 (2.4) inches (mm)
Specifications Chassis Thickness
.031 - .078 (.7-1.98) inches (mm)
Specifications Dim L 015
.187 (4.8) inches (mm)
