Circuit Board Support - .093 Thick PCB, Nylon 66, UL94V-2, Pack of 1000
Circuit Board Support - .093 Thick PCB, Nylon 66, UL94V-2, Pack of 1000
SKU:01C-050fac
Premium Circuit Board Support for .093 Thick PCBs. Pack of 1000. Durable Nylon 66 Construction. UL94V-2 Rated. ASTM D 4066, PA111 Compliant.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
Circuit Board Support - .093 Thick PCB, Nylon 66, UL94V-2, Pack of 1000
$59.99
Quantity: 1
Claim Your Seller Account
Circuit Board Support - .093 Thick PCB, Nylon 66, UL94V-2, Pack of 1000
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 13-3 Series Circuit Board Support is designed to provide robust support for .093 inch thick PCBs. Each pack contains 1000 supports made of Nylon 66, ensuring durability and reliability. These supports are UL94V-2 rated (UL94V-0 available upon request) and meet ASTM D 4066, PA111 standards. With a temperature range of -40 to 185°F, these supports guarantee secure placement and stability in various applications. Enhance your circuit board setup with these precise and compliant supports.

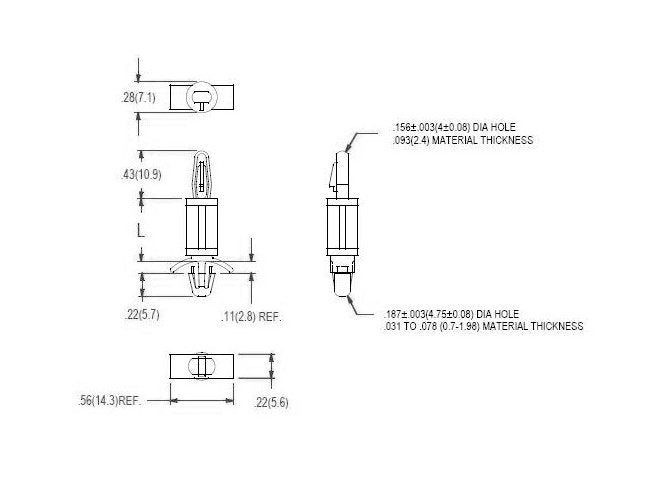

Product Specifications
Specifications Board Thickness
.093 (2.4) inches (mm)
Specifications Chassis Thickness
.031 - .078 (.7-1.98) inches (mm)
Specifications Dim L 015
.250 (6.4) inches (mm)
