Circuit Board Support 13-3 Series: .156 Board Hole(.093 Thk Brd) x .187 Chassis Hole
Circuit Board Support 13-3 Series: .156 Board Hole(.093 Thk Brd) x .187 Chassis Hole
SKU:01C-2f1cdb
Securely hold .093 thick PCBs with Circuit Board Support 13-3 Series. Pack of 1000, Nylon 66 material, ASTM D 4066, PA111 compliant.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Circuit Board Support 13-3 Series: .156 Board Hole(.093 Thk Brd) x .187 Chassis Hole
$39.99
Quantity: 1
Claim Your Seller Account
Circuit Board Support 13-3 Series: .156 Board Hole(.093 Thk Brd) x .187 Chassis Hole
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

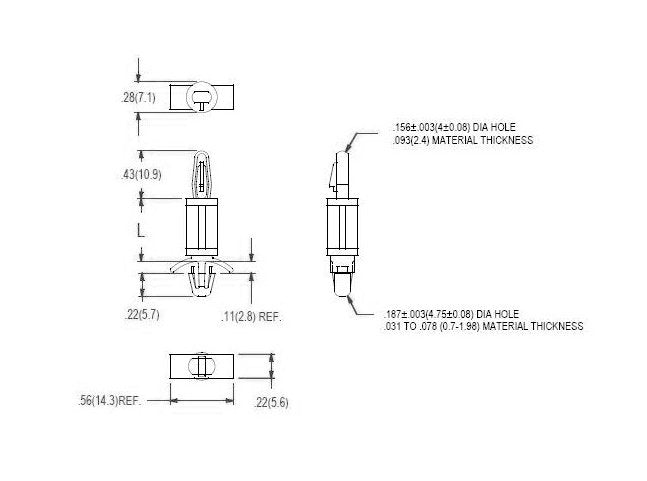

The Circuit Board Support 13-3 Series is designed to securely hold .093 thick PCBs with precision. Made from Nylon 66 UL94V-2 material (UL94V-0 available), these supports ensure reliable stability in a wide temperature range (-40 to 185F). Each pack contains 1000 supports for efficient PCB packaging. Measuring .375 inches in length, they accommodate .093-inch board thickness and chassis thickness ranging from .031 to .078 inches. Compliant with ASTM D 4066, PA111 and RoHS standards, these supports are ideal for demanding institutional applications that require durability and precision.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Board Thickness
.093 (2.4) inches (mm)
Specifications Chassis Thickness
.031 - .078 (.7-1.98) inches (mm)
Specifications Dim L 015
.375 (9.5) inches (mm)
