Circuit Board Support 13-6 Series
Circuit Board Support 13-6 Series
SKU:01C-ec2726
Durable Circuit Board Support for .093 PCB & .078-.140 Chassis, RoHS Compliant, Temp Range -40 to 185F, ASTM D 4066
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Circuit Board Support 13-6 Series
$29.99
Quantity: 1
Claim Your Seller Account
Circuit Board Support 13-6 Series
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

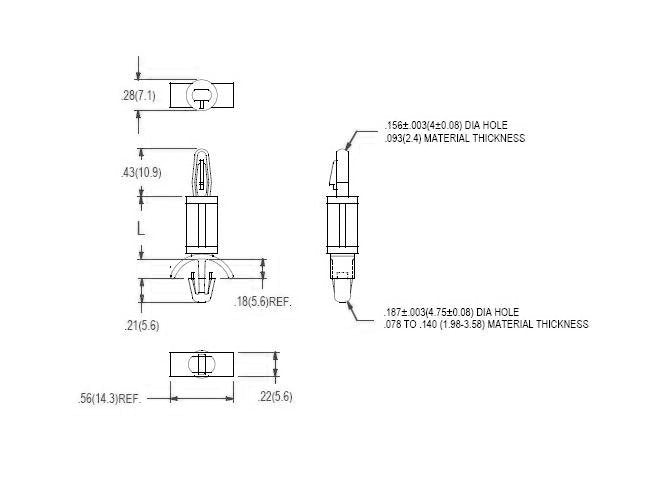

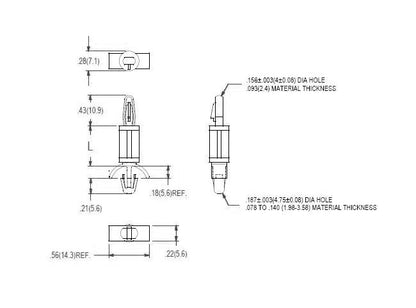

The Circuit Board Support 13-6 Series is designed for .093 thick PCBs and .078-.140 thick chassis, providing sturdy support and protection. Made of Nylon 66 UL94V-2 material, this support is RoHS compliant and meets ASTM D 4066, PA111 standards. With a temperature range of -40 to 185F (-40 to 85C), it ensures reliable performance in various environments.
Product Specifications
Specifications Board Thickness
.093 (2.4) inches (mm)
Specifications Chassis Thickness
.078-.140 (1.98-3.58) inches (mm)
Specifications Dim L 015
1.25 (31.7) inches (mm)
