Circuit Board Support 13-6 Series
Circuit Board Support 13-6 Series
SKU:01C-ab161b
Durable Circuit Board Support for .093 PCB, Nylon 66 material, ASTM D 4066 & RoHS compliant, temp range -40 to 185F
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Circuit Board Support 13-6 Series
$39.99
Quantity: 1
Claim Your Seller Account
Circuit Board Support 13-6 Series
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

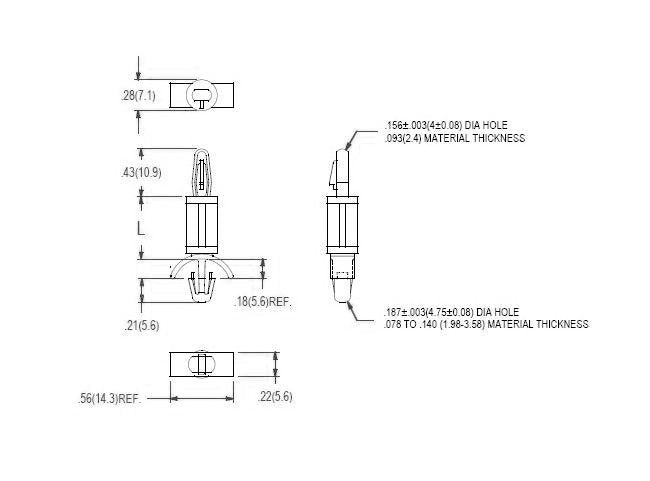

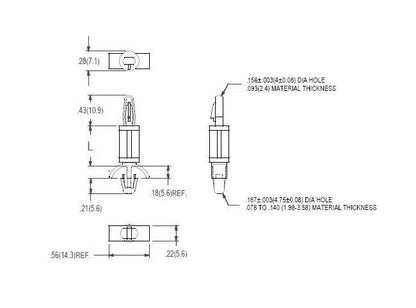

The Circuit Board Support 13-6 Series is a reliable solution designed for .093 thick PCBs and chassis thickness ranging from .078 to .140 inches. Made of Nylon 66 UL94V-2 material (UL94V-0 available), this pack of 1000 supports ensures secure mounting. With ASTM D 4066 and PA111 compliance, RoHS certification, and a temperature range of -40 to 185F (-40 to 85C), this product guarantees durability and safety in various environments.
Product Specifications
Specifications Board Thickness
.093 (2.4) inches (mm)
Specifications Chassis Thickness
.078-.140 (1.98-3.58) inches (mm)
Specifications Dim L 015
.187 (4.8) inches (mm)
